Trane RLY1040 Relay

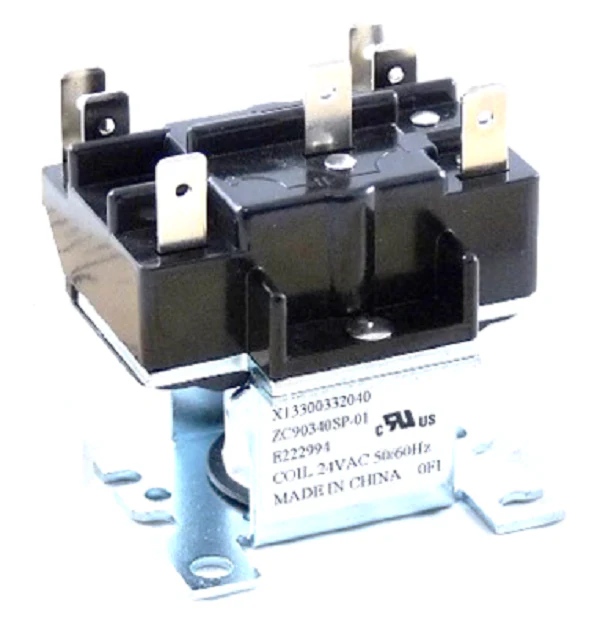

The Trane RLY1040 Relay is a heavy-duty 24V SPDT relay engineered for versatile switching in commercial and residential HVAC systems. As a genuine OEM replacement part, it is designed for high-cycle reliability when managing inductive loads like blower motors, fans, and combustion blowers. The single pole double throw (SPDT) configuration acts as a critical intermediary, allowing 24V control signals to switch higher-current circuits or manage two separate outputs from a single input. This switching relay ensures electrical isolation between low-voltage thermostat circuits and line-voltage components, protecting control boards from back EMF. With 50/60Hz coil compatibility and a rugged contact design, the RLY1040 maintains precise system timing and equipment sequencing. Its compact footprint fits standard control panels, making it an essential component for technicians maintaining Trane and American Standard air handlers, furnaces, and packaged units.
Key Benefits- Versatile Circuit Control: The single pole double throw design allows for switching between two different loads, ideal for fan speed control or heat/cool sequencing.
- OEM Compatibility: Precision-matched for Trane and American Standard systems to ensure correct voltage pull-in and dropout performance.
- Heavy-Duty Contacts: Built to handle the high inrush currents typical of HVAC induction motors without excessive pitting or sticking.
- System Protection: Provides necessary isolation to prevent line voltage feedback from damaging sensitive low-voltage electronics.
How do I test the Trane RLY1040 relay?
Use a multimeter to verify coil resistance across terminals and check for continuity across the normally closed (NC) and normally open (NO) contacts while the coil is energized with 24VAC.
Can I use an RLY1040 to replace an SPST relay?
Yes, an SPDT relay can perform the function of an SPST (Single Pole Single Throw) by using only the common and the normally open or normally closed terminal as required by the circuit.
What causes a relay coil to fail?
Relay coils typically fail due to voltage spikes, overheating from excessive cycling, or sustained low-voltage brownout conditions that prevent the armature from fully seating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $26.03
-65%$26.03
$9.11Trane RLY1040 Relay
The Trane RLY1040 Relay is a heavy-duty 24V SPDT relay engineered for versatile switching in commercial and residential HVAC systems. As a genuine OEM replacement part, it is designed for high-cycle reliability when managing inductive loads like blower motors, fans, and combustion blowers. The single pole double throw (SPDT) configuration acts as a critical intermediary, allowing 24V control signals to switch higher-current circuits or manage two separate outputs from a single input. This switching relay ensures electrical isolation between low-voltage thermostat circuits and line-voltage components, protecting control boards from back EMF. With 50/60Hz coil compatibility and a rugged contact design, the RLY1040 maintains precise system timing and equipment sequencing. Its compact footprint fits standard control panels, making it an essential component for technicians maintaining Trane and American Standard air handlers, furnaces, and packaged units.
Key Benefits- Versatile Circuit Control: The single pole double throw design allows for switching between two different loads, ideal for fan speed control or heat/cool sequencing.
- OEM Compatibility: Precision-matched for Trane and American Standard systems to ensure correct voltage pull-in and dropout performance.
- Heavy-Duty Contacts: Built to handle the high inrush currents typical of HVAC induction motors without excessive pitting or sticking.
- System Protection: Provides necessary isolation to prevent line voltage feedback from damaging sensitive low-voltage electronics.
How do I test the Trane RLY1040 relay?
Use a multimeter to verify coil resistance across terminals and check for continuity across the normally closed (NC) and normally open (NO) contacts while the coil is energized with 24VAC.
Can I use an RLY1040 to replace an SPST relay?
Yes, an SPDT relay can perform the function of an SPST (Single Pole Single Throw) by using only the common and the normally open or normally closed terminal as required by the circuit.
What causes a relay coil to fail?
Relay coils typically fail due to voltage spikes, overheating from excessive cycling, or sustained low-voltage brownout conditions that prevent the armature from fully seating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
