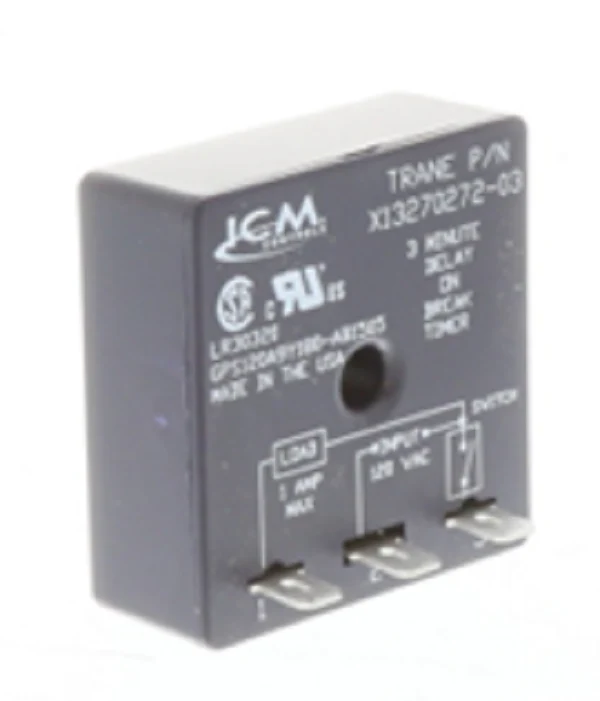

Trane RLY0923 Relay
As a veteran HVACR technician, when a system's timing sequence goes off, you don't want to mess around with generic components. The Trane RLY0923 Relay is a specialized time delay relay engineered specifically for precision control in furnaces, air handlers, and heat pump systems. Operating primarily as a 3-minute delay on break timer, this OEM component is crucial for preventing short-cycling of the compressor and ensuring the blower motor clears the heat exchanger or coil effectively after the thermostat satisfies. It functions on a 120V control circuit with a 1 Amp maximum rating, making it the bedrock for reliable HVAC electrical sequencing in Trane and American Standard residential and commercial equipment. This unit, also identified by cross-reference numbers RLY00923 and X13270272-03, is built for the high-duty cycles of pro-grade mechanical rooms. When you are troubleshooting a fan control relay or a compressor protection timer, swapping in this exact-fit Trane replacement relay ensures the logic of the control board remains intact and the inductive loads are managed without premature contact pitting.
Key Benefits for the Contractor:- Optimized System Protection: The 3-minute delay prevents rapid compressor cycling, significantly reducing mechanical stress on the system.
- Universal Trane Compatibility: Directly replaces part numbers RLY00923 and X13270272-03, ensuring no-drill installation in existing control cabinets.
- Reliable 120V Logic: Rated for 120-volt HVAC control circuits, providing stable performance across a wide range of air handler and furnace platforms.
- Efficient Thermal Management: Allows the blower to run for a specific interval post-call, maximizing sensible heat recovery and system SEER/HSPF efficiency.
What is the specific timing profile for the RLY0923?
This is a "delay on break" (DOB) timer, typically factory-set for a 3-minute interval to protect HVAC components from short-cycling.
Can I use this relay on a 24V control circuit?
No, this specific model is designed for 120V power supply applications. Always verify your control voltage with a multimeter before wiring.
Will this replace an X13270272-03 exactly?
Yes, the RLY0923 is the current OEM service replacement for the X13270272-03 and maintains identical electrical specifications and form factor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $90.92
-65%$90.92
$31.82Trane RLY0923 Relay
As a veteran HVACR technician, when a system's timing sequence goes off, you don't want to mess around with generic components. The Trane RLY0923 Relay is a specialized time delay relay engineered specifically for precision control in furnaces, air handlers, and heat pump systems. Operating primarily as a 3-minute delay on break timer, this OEM component is crucial for preventing short-cycling of the compressor and ensuring the blower motor clears the heat exchanger or coil effectively after the thermostat satisfies. It functions on a 120V control circuit with a 1 Amp maximum rating, making it the bedrock for reliable HVAC electrical sequencing in Trane and American Standard residential and commercial equipment. This unit, also identified by cross-reference numbers RLY00923 and X13270272-03, is built for the high-duty cycles of pro-grade mechanical rooms. When you are troubleshooting a fan control relay or a compressor protection timer, swapping in this exact-fit Trane replacement relay ensures the logic of the control board remains intact and the inductive loads are managed without premature contact pitting.
Key Benefits for the Contractor:- Optimized System Protection: The 3-minute delay prevents rapid compressor cycling, significantly reducing mechanical stress on the system.
- Universal Trane Compatibility: Directly replaces part numbers RLY00923 and X13270272-03, ensuring no-drill installation in existing control cabinets.
- Reliable 120V Logic: Rated for 120-volt HVAC control circuits, providing stable performance across a wide range of air handler and furnace platforms.
- Efficient Thermal Management: Allows the blower to run for a specific interval post-call, maximizing sensible heat recovery and system SEER/HSPF efficiency.
What is the specific timing profile for the RLY0923?
This is a "delay on break" (DOB) timer, typically factory-set for a 3-minute interval to protect HVAC components from short-cycling.
Can I use this relay on a 24V control circuit?
No, this specific model is designed for 120V power supply applications. Always verify your control voltage with a multimeter before wiring.
Will this replace an X13270272-03 exactly?
Yes, the RLY0923 is the current OEM service replacement for the X13270272-03 and maintains identical electrical specifications and form factor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
