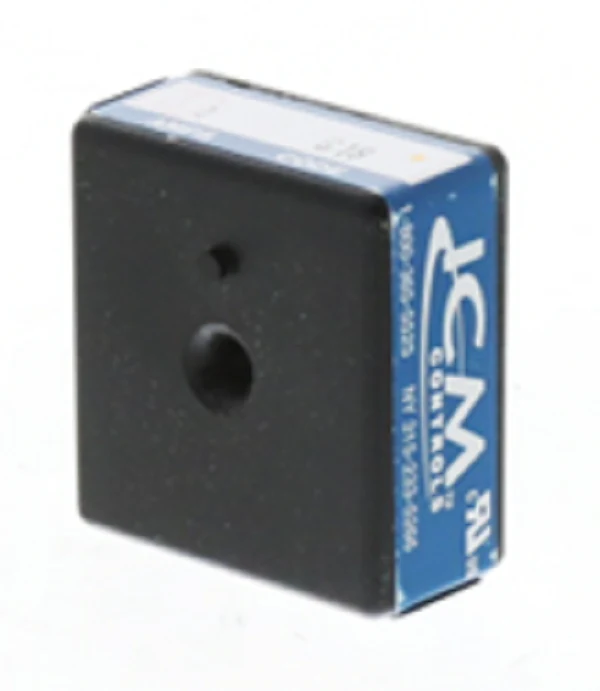

Trane RLY0585 Relay
The Trane RLY0585 Relay is a professional-grade 5-minute time delay relay designed specifically for heavy-duty HVAC system protection. Engineered to handle a 24V control circuit, this component acts as a critical safeguard against compressor short cycling, which is a leading cause of premature equipment failure. By enforcing a 300-second (5-minute) delay-on-break sequence, it ensures that refrigerant pressures can equalize fully before the system attempts to restart. This is an essential Trane replacement part for technicians performing air conditioner repair or heat pump maintenance where reliable timing is paramount.
For contractors, the RLY0585 offers a robust solution for managing HVAC electrical loads. It features a 1A contact rating at 24 VAC, making it ideal for interlocking with low voltage control signals in residential and light commercial air handlers. The compact 3.5-inch depth allows for easy mounting within tight electrical compartments, providing a direct fit for Trane supply inventory and legacy unit configurations. If you are dealing with erratic blower behavior or protecting sensitive condenser unit components, this time delay relay delivers the precise switching needed to maintain system integrity.
Key Benefits:
- Prevents compressor short cycling by enforcing a 300-second delay between cycles.
- Optimized for 24V HVAC control circuits and standard thermostat signals.
- Compact, industry-standard footprint for efficient HVAC repair and rapid field installation.
- Protects AC compressors and fan motors from high-pressure restart stresses.
- Reliable OEM-grade performance specifically tailored for Trane and American Standard equipment.
Common Questions:
Is the Trane RLY0585 compatible with 120V circuits?
No, this specific model is designed for 24 VDC/VAC control circuits. Using this relay in high-voltage 120V or 240V load applications will cause immediate coil failure.
Does this relay provide a delay on make or delay on break?
The RLY0585 is typically utilized as a delay-on-break timer in HVAC systems to ensure the system remains off for 5 minutes after a cooling call ends, allowing the compressor to rest.
How do I test the RLY0585 with a multimeter?
Check for 24V input at the coil terminals. After the signal is removed, use the continuity setting to verify the contacts remain in their switched position for exactly 5 minutes before resetting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
