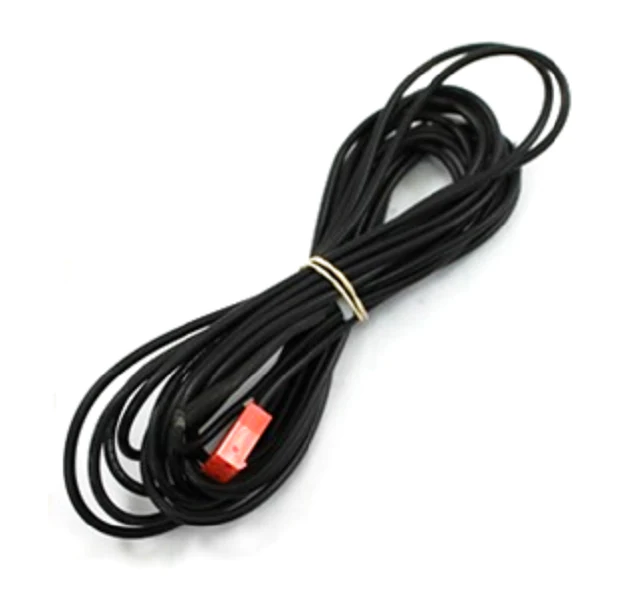

Trane RES0171 Sensor
The Trane RES0171 (also categorized as RES00171) is a high-precision HVAC thermistor ambient sensor engineered for critical temperature monitoring in residential and light commercial split systems. As a genuine OEM Trane replacement part, this 10K ohm outdoor air temperature sensor integrates directly with the equipment's control logic to provide real-time thermal feedback. Accurate data from this ambient temperature sensor is essential for optimizing compressor staging, governing defrost cycles in heat pump applications, and managing economizer functions. This outdoor thermistor features a robust plastic housing with a 1/2" NPT connection, ensuring a weather-resistant seal and durable performance in extreme environmental conditions.
When troubleshooting intermittent system behavior or "out of range" sensor faults, replacing a drifted or failed sensor with this Trane RES0171 sensor restores factory-spec efficiency. It is compatible with a broad range of models, including the 4WHC, DCY, WCH, and WCP series. Proper field installation requires mounting on the north-facing side of the structure to prevent solar load bias, ensuring the HVAC control board receives the most accurate ambient data for system protection and comfort management.
Key Benefits- Precise 10K Ohm Resistance: Delivers accurate temperature-to-voltage conversion for reliable HVAC system monitoring.
- Direct OEM Compatibility: Verified fit for Trane and American Standard outdoor units, replacing TRNRES0171 and RES00171.
- Optimized Performance: Facilitates proper heat pump defrost and compressor cooling cycles to prevent unnecessary equipment wear.
- Rugged Construction: Designed with a 1/2" NPT threaded connection for secure mounting in high-vibration outdoor environments.
How do I test the Trane RES0171 to see if it is faulty?
Disconnect the sensor and measure the resistance across the two leads using a multimeter set to the k-ohm scale. At 77°F (25°C), a functional 10K ohm 103AT-type thermistor should read approximately 10,000 ohms. Significant deviation from the temperature-resistance chart indicates a failed component.
Will this sensor work with both air conditioners and heat pumps?
Yes, this ambient temperature sensor is used across various platforms. In straight cool systems, it helps monitor ambient air for low-ambient cooling kits, while in heat pumps, it is a primary input for the defrost control board to determine when to initiate a defrost cycle.
What causes an ambient sensor to fail?
Common failure points include moisture intrusion in the sensing bulb, wire corrosion, or physical damage from debris. Using a genuine OEM Trane RES0171 ensures the resistance curve matches the control board's programmed parameters, preventing false error codes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
