Trane PLU1177 Plug

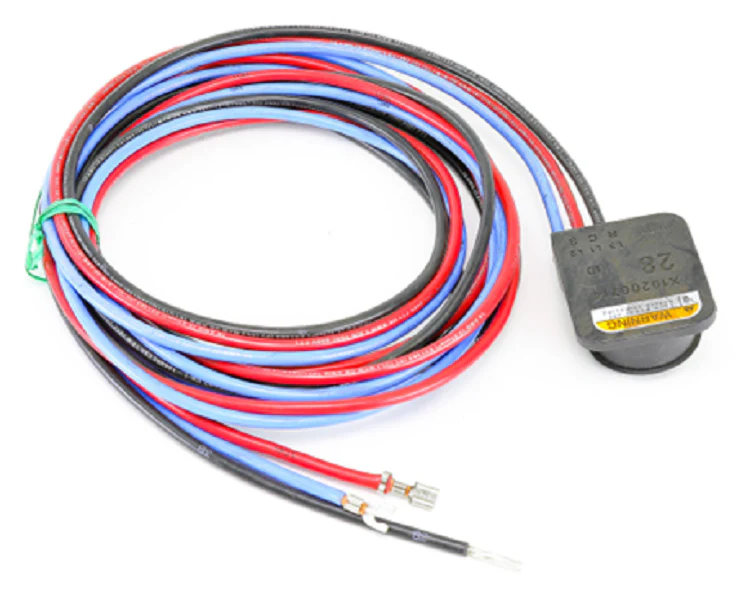

The Trane PLU1177 Plug is an essential OEM compressor wiring harness designed specifically for scroll compressor applications in commercial and residential HVAC systems. Engineers and technicians recognize this molded electrical plug for its ability to provide a secure, vibration-resistant connection at the compressor terminal block. Operating typically within 208/230V circuits, it ensures consistent electrical phasing and prevents common failures like arcing or loose terminal connections that lead to motor burnout. This high-quality HVAC compressor connector features color-coded leads—typically red, blue, and black—to facilitate accurate wiring and maintain proper clockwise rotation, which is critical for the mechanical integrity of scroll-type compression cycles.
Key Benefits
- Ensures a stable, high-current connection for 208/230V scroll compressors.
- Reduces the risk of terminal pin failure and overheating caused by high-resistance connections.
- Features durable, OEM-spec insulation to withstand the high-temperature environment of the compressor compartment.
- Simplifies field maintenance and motor swaps with its standard 3-pin plug configuration.
Common Questions
Will this plug fit all Trane scroll compressors?
While the Trane PLU1177 is a standard replacement for many 30-60 MBH systems, always verify your specific model's terminal spacing and pin configuration in the official wiring diagram.
What causes these plugs to melt or fail?
Most failures are due to loose connections at the terminal pin or excessive heat from internal compressor faults. Replacing the wiring harness alongside a compressor swap is a best practice to ensure a clean electrical path.
How do I ensure correct phasing with this harness?
Follow the standard A-B-C phase sequence. Correct rotation is indicated by immediate pumping; if the compressor is noisy and not building head pressure, the phase sequence may be reversed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $336.61
-65%$336.61
$117.81Trane PLU1177 Plug
The Trane PLU1177 Plug is an essential OEM compressor wiring harness designed specifically for scroll compressor applications in commercial and residential HVAC systems. Engineers and technicians recognize this molded electrical plug for its ability to provide a secure, vibration-resistant connection at the compressor terminal block. Operating typically within 208/230V circuits, it ensures consistent electrical phasing and prevents common failures like arcing or loose terminal connections that lead to motor burnout. This high-quality HVAC compressor connector features color-coded leads—typically red, blue, and black—to facilitate accurate wiring and maintain proper clockwise rotation, which is critical for the mechanical integrity of scroll-type compression cycles.
Key Benefits
- Ensures a stable, high-current connection for 208/230V scroll compressors.
- Reduces the risk of terminal pin failure and overheating caused by high-resistance connections.
- Features durable, OEM-spec insulation to withstand the high-temperature environment of the compressor compartment.
- Simplifies field maintenance and motor swaps with its standard 3-pin plug configuration.
Common Questions
Will this plug fit all Trane scroll compressors?
While the Trane PLU1177 is a standard replacement for many 30-60 MBH systems, always verify your specific model's terminal spacing and pin configuration in the official wiring diagram.
What causes these plugs to melt or fail?
Most failures are due to loose connections at the terminal pin or excessive heat from internal compressor faults. Replacing the wiring harness alongside a compressor swap is a best practice to ensure a clean electrical path.
How do I ensure correct phasing with this harness?
Follow the standard A-B-C phase sequence. Correct rotation is indicated by immediate pumping; if the compressor is noisy and not building head pressure, the phase sequence may be reversed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
