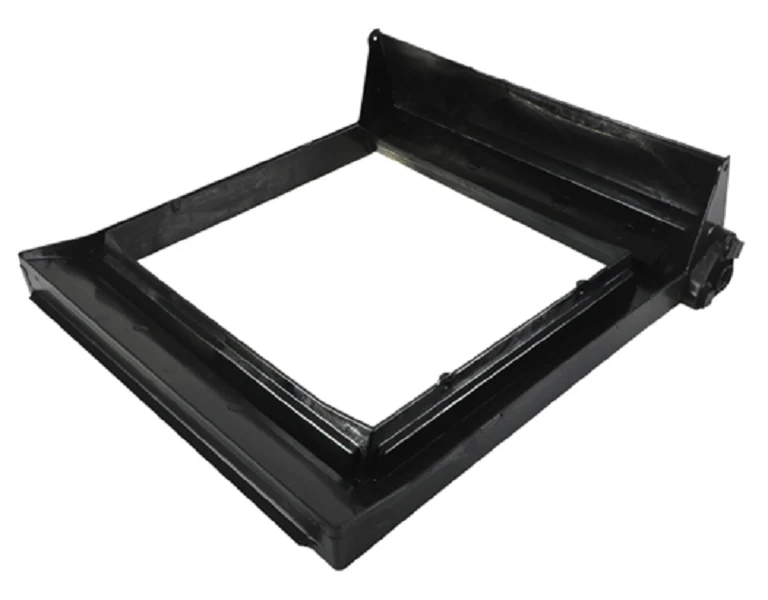

Trane PAN1071 Drain Pan
For service calls involving cracked or stagnant secondary drainage, the Trane PAN1071 Evaporator Drain Pan provides a direct OEM replacement to ensure moisture management integrity. This polymer-based A-Coil drain pan is engineered to handle the high-static environments of residental and light commercial air handlers, measuring precisely 20.22" x 21.64" x 6". When replacing a clogged HVAC condensate pan, using this genuine Trane replacement part eliminates the seating issues and port misalignment common with universal aftermarket alternatives. Its corrosion-resistant construction is critical for long-term exposure to condensate, preventing the structural degradation that leads to costly secondary property damage. As a seasoned tech knows, a precise furnace coil pan fit is essential for maintaining proper drainage slope and airflow clearance within the cabinet, ensuring the condensation collection system operates at peak efficiency without bypass leaks.
Key Benefits for Professionals
- Exact OEM Specification: Guaranteed fit for specific Trane and American Standard air handlers, eliminating field modifications.
- High-Temperature Durability: Structural integrity maintained under various thermal loads without warping.
- Optimized Drainage: Pitch-engineered surface prevents standing water and biological growth.
- Robust Port Threading: Reinforced drain connections prevent stripping during PVC fitting installation.
Common Installation Questions
What are the exact dimensions of the PAN1071?
This pan measures 20.22 inches in length, 21.64 inches in width, and has a depth of 6 inches for maximum overflow protection.
Is this pan compatible with heat pump applications?
Yes, the Trane PAN1071 is designed for use in both cooling-only and heat pump evaporator coils where moisture removal is constant.
Does it include the drain plugs?
This is the primary evaporator drain pan assembly; it is recommended to verify port plug requirements based on your specific cabinet orientation (upflow, downflow, or horizontal).
California residents: This product contains materials known to the State of California to cause cancer and reproductive harm. (Prop 65 Warning)
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
