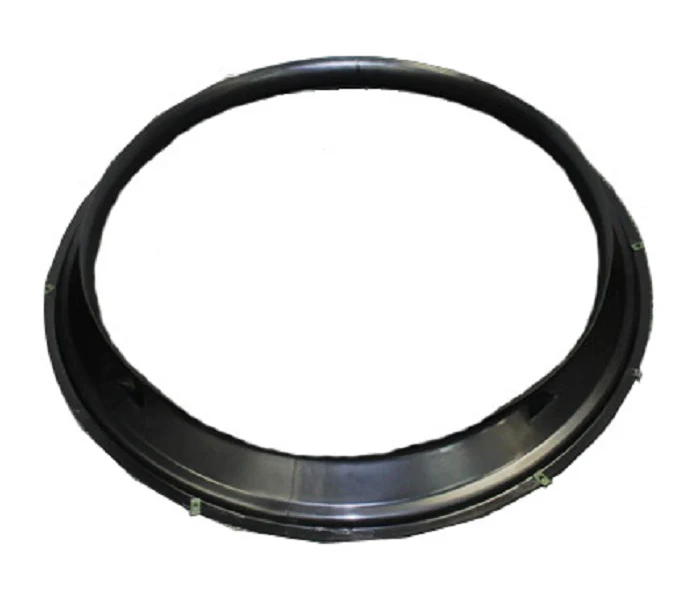

Trane ORF1507 Orifice
The Trane ORF1507 is a critical OEM replacement fan orifice designed for precise airflow regulation in commercial and industrial HVAC systems. Engineered as a high-performance fan shroud component, this 31-inch OD sheet metal orifice optimization facilitates a laminar air path, ensuring your condenser fan assembly operates at peak static pressure efficiency. For technicians troubleshooting high superheat or restricted airflow, installing a genuine Trane ORF1507 orifice is essential to maintain the design-specified CFM and prevent premature compressor wear caused by insufficient heat exchange.
Constructed with durable materials to withstand high-velocity environments, the ORF1507 serves as a direct fit for compatible Trane air handlers and condensers. Its unique 32.7-inch footprint and 31-inch opening are calibrated to minimize turbulence and maximize the fan system efficiency. When performing a teardown or routine maintenance on Trane units, replacing a warped or corroded orifice with this HVAC replacement part ensures the system meets the original manufacturer’s performance curves, keeping the refrigerant cycle balanced and your subcooling levels within spec.
- Precision Airflow Management: Optimized for high-volume HVAC systems to ensure uniform air distribution across the heat exchanger.
- OEM Compatibility: Specifically designed as a Trane fan orifice to guarantee seamless integration with existing fan motors and blades.
- Industrial Durability: Robust sheet metal construction provides long-term resistance to vibration and environmental exposure.
- Enhanced Efficiency: Reduces bypass air and turbulence, directly improving system performance and energy consumption.
Common Questions
What are the dimensions of the Trane ORF1507?
The unit features an outside diameter (OD) of approximately 31 inches, with a total outer frame measuring roughly 32.7 inches by 32.7 inches. Always verify your shroud clearance before installation.
How does a faulty fan orifice affect my HVAC system?
A damaged or improperly seated orifice allows air to recirculate or creates "dead spots" in the airflow. This leads to higher head pressures and reduced cooling capacity across the coils.
Is the ORF1507 used in both heating and cooling applications?
Yes, this component is utilized in various Trane commercial and residential fan decks where 31-inch airflow regulation is required for thermal management.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $117.66
-65%$117.66
$41.18Trane ORF1507 Orifice
The Trane ORF1507 is a critical OEM replacement fan orifice designed for precise airflow regulation in commercial and industrial HVAC systems. Engineered as a high-performance fan shroud component, this 31-inch OD sheet metal orifice optimization facilitates a laminar air path, ensuring your condenser fan assembly operates at peak static pressure efficiency. For technicians troubleshooting high superheat or restricted airflow, installing a genuine Trane ORF1507 orifice is essential to maintain the design-specified CFM and prevent premature compressor wear caused by insufficient heat exchange.
Constructed with durable materials to withstand high-velocity environments, the ORF1507 serves as a direct fit for compatible Trane air handlers and condensers. Its unique 32.7-inch footprint and 31-inch opening are calibrated to minimize turbulence and maximize the fan system efficiency. When performing a teardown or routine maintenance on Trane units, replacing a warped or corroded orifice with this HVAC replacement part ensures the system meets the original manufacturer’s performance curves, keeping the refrigerant cycle balanced and your subcooling levels within spec.
- Precision Airflow Management: Optimized for high-volume HVAC systems to ensure uniform air distribution across the heat exchanger.
- OEM Compatibility: Specifically designed as a Trane fan orifice to guarantee seamless integration with existing fan motors and blades.
- Industrial Durability: Robust sheet metal construction provides long-term resistance to vibration and environmental exposure.
- Enhanced Efficiency: Reduces bypass air and turbulence, directly improving system performance and energy consumption.
Common Questions
What are the dimensions of the Trane ORF1507?
The unit features an outside diameter (OD) of approximately 31 inches, with a total outer frame measuring roughly 32.7 inches by 32.7 inches. Always verify your shroud clearance before installation.
How does a faulty fan orifice affect my HVAC system?
A damaged or improperly seated orifice allows air to recirculate or creates "dead spots" in the airflow. This leads to higher head pressures and reduced cooling capacity across the coils.
Is the ORF1507 used in both heating and cooling applications?
Yes, this component is utilized in various Trane commercial and residential fan decks where 31-inch airflow regulation is required for thermal management.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
