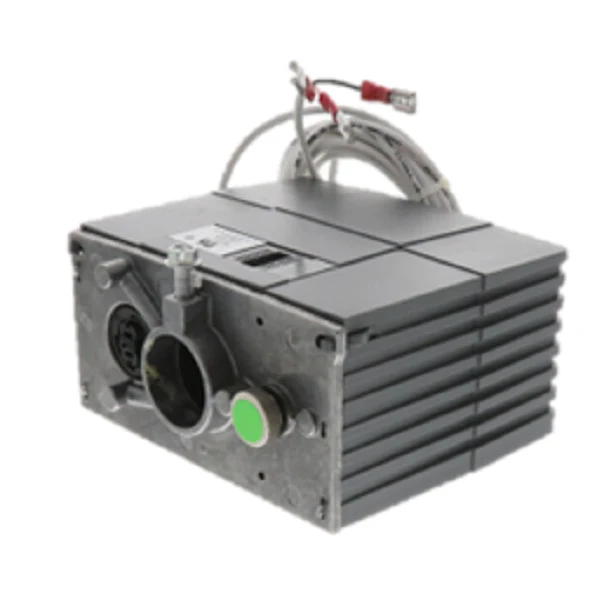

Trane OPR0170 Floating Actuator
The Trane OPR0170 is a heavy-duty 24V floating actuator engineered for precise modulation of dampers and valves in commercial HVACR systems. Built for seamless integration with Trane air handlers and rooftop units, this non-spring return actuator utilizes a floating control signal to provide accurate positioning for optimized airflow and temperature management. The unit comes equipped with a factory-installed 10ft cable, offering significant flexibility for field installation in tight mechanical spaces or large plenum configurations.
Designed to replace legacy models like the OPR0109 and 40LZ25, the OPR0170 features a robust internal gear train that ensures reliable operation under continuous duty cycles. This HVAC damper actuator operates efficiently on 24V AC/DC, minimizing power consumption while maintaining high torque output for 1-inch stroke applications. As an OEM Trane heating part, it eliminates the compatibility guesswork often associated with universal aftermarket components, ensuring the control board recognizes the signal response without additional calibration.
Key Benefits
- Precision Modulation: Floating control logic allows for incremental adjustments to maintain exact setpoints.
- Extended Reach: Includes a 10-foot electrical lead for easier wiring in complex HVAC cabinet layouts.
- Drop-in Compatibility: OEM replacement actuator for models OPR0109, OPR-0109, OPR00109, and 40LZ25.
- Industrial Build: Rated for demanding commercial environments with a 1.61 lbs high-durability housing.
Common Questions
Is this a spring-return or non-spring return actuator?
The OPR0170 is a non-spring return (fail-in-place) actuator, meaning it maintains its last position upon loss of power rather than driving to a fully open or closed state.
What is the primary application for this part?
It is primarily used for regulating outside air dampers, mixed air dampers, and valve assemblies within Trane packaged units and air handling systems.
Can I use this with a 2-10VDC modulating signal?
No, this is a floating control actuator. It requires a three-point signal (increase/decrease/hold) rather than a proportional analog voltage signal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
