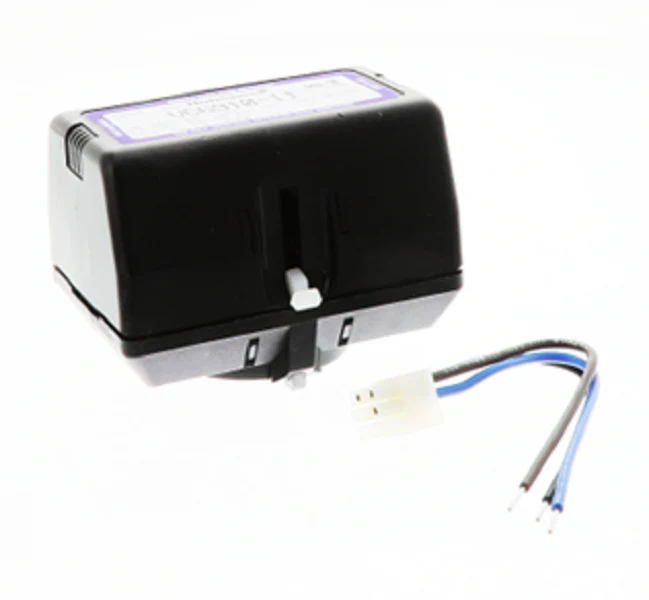

Trane OPR0120 Actuator
The Trane OPR0120 is a specialized 24V modulating valve actuator engineered for precise proportional control in commercial and residential HVAC systems. Designed as a direct OEM replacement part, this modulating control actuator integrates seamlessly with Trane floating controllers and 3-wire 24Vac signals to regulate the flow of hot or chilled water through VAV terminals, fan coil units, and reheat coils. Its compact footprint ensures a low-profile fit in dense mechanical cabinets, while the integrated internal end switches actively protect the gear train and motor from excessive wear during high-cycle operations. The OPR0120 features a manual override lever and position indicator, allowing technicians to manually position the valve for system flushing or emergency bypass without requiring a control signal. With a 3 VA power consumption profile and a nominal 90-degree cycle time of 120 seconds, this HVAC valve actuator provides the linear or equal percentage flow characteristics necessary to maintain tight temperature setpoints and improve overall system Delta T.
Key Benefits for Field Technicians- Precision Control: Utilizes a 3-wire floating signal for exact fluid modulation, eliminating the hunting common in lower-tier HVAC actuators.
- Ease of Service: Removable from the valve body without needing to drain the hydronic system, significantly reducing downtime during replacement.
- Enhanced Durability: Features a fire-retardant GRPA6-230 housing and reinforced nylon chassis to withstand ambient temperatures up to 122°F.
- Universal Compatibility: Works with both 2-way and 3-way Trane brass body ball valve assemblies commonly found in air handlers and furnaces.
- Manual Override: Built-in manual button and lever allow for easy system commissioning and venting without electrical power.
Is the Trane OPR0120 compatible with 2-way or 3-way valves?
This actuator is versatile and can be used on both 2-way and 3-way Trane modulating control valves. In 3-way applications, it supports both mixing and diverting configurations depending on the port configuration.
What signal type does the OPR0120 require?
It operates on a 24Vac, 50/60 Hz power supply and requires a 3-wire floating control signal. Check your controller output to ensure a 24V supply and appropriate common/hot/control wiring.
Can I replace this actuator without draining my system?
Yes. The OPR0120 is designed to be removed from the valve stem by unscrewing the threaded ring, allowing you to swap the drive motor while the valve remains inline and pressurized.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
