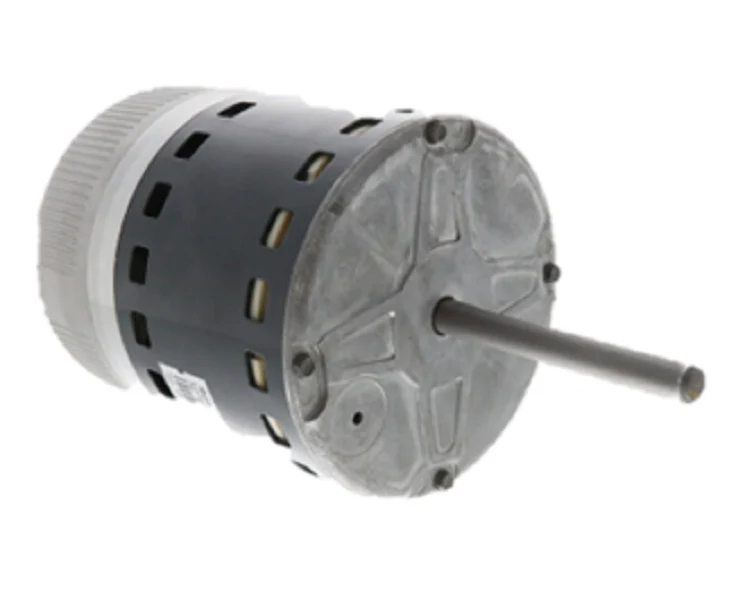

Trane MOT9257 Motor
The Trane MOT09257 motor is a high-performance 1/2 HP ECM blower motor designed for precision airflow control in Trane and American Standard residential systems. This Genteq 5SBA39GLV5154 motor operates on 115/230V dual-voltage settings, utilizing a brushless DC motor architecture to provide variable-speed operation that significantly reduces energy consumption compared to standard PSC motors. As an OEM Trane replacement motor, it integrates seamlessly with the 16-pin and 5-pin control harnesses found in variable-speed air handlers and furnaces. For technicians in the field, this 1050 RPM motor features a NEMA 48 frame, a 1/2-inch shaft diameter, and a counter-clockwise (CCW) rotation. Every Trane ECM blower motor comes pre-programmed for specific airflow curves, ensuring the system maintains static pressure requirements without additional field configuration. Replacing a failed induction motor with this variable speed fan motor ensures the maintenance of factory-specified efficiency and dehumidification performance.
Key Benefits
- Dual-Voltage Versatility: Direct-drive compatibility with both 115V and 230V systems simplifies inventory for various Trane furnace and air handler configurations.
- High-Efficiency Performance: The ECM 2.3 technology reduces electrical draw by up to 50% under part-load conditions compared to fixed-speed alternatives.
- OEM Integration: This genuine Trane part ensures the control module communication aligns with the system control board for proper ramping and airflow profiling.
- Quiet Operation: Soft-start and soft-stop capabilities eliminate the "bang" associated with motor startup, extending the life of the blower wheel and ductwork.
- Heavy-Duty Construction: Equipped with premium ball bearings and an Open Air Over (OAO) enclosure for reliable thermal management in high-duty cycle applications.
Common Questions
Is the MOT09257 motor pre-programmed?
Yes, this programmed ECM motor comes with factory-loaded parameters tailored for compatible Trane systems, making it a plug-and-play solution for the technician.
Can I replace just the module instead of the whole motor?
While the module can often be the failure point, replacing the entire MOT09257 assembly ensures the physical bearings and windings are also new, preventing a secondary mechanical failure shortly after repair.
What causes these ECM motors to fail prematurely?
Excessive static pressure from dirty filters or undersized ductwork often leads to overheating. It is critical to check the blower wheel for balance and debris when installing this HVAC replacement motor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $832.84
-65%$832.84
$291.49Trane MOT9257 Motor
