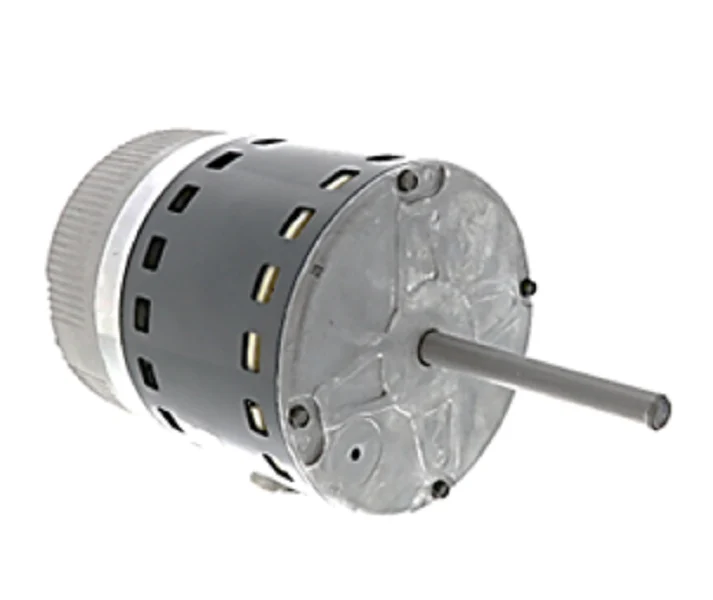

Trane MOT9249 Motor
As an experienced HVAC tech, you know that keeping a high-efficiency Trane blower motor running is critical for maintaining static pressure and airflow across the coil. The Trane MOT9249 is a 1/2 HP variable speed motor (ECM) designed for 115V single-phase applications. This OEM replacement motor, also identified by part number MOT09249, is factory-programmed to ensure the specific torque and CFM requirements of your Trane furnace or air handler are met without the need for field programming. Operating at a nominal 1050 RPM with CCW rotation, this ECM blower motor utilizes an integrated electronic control module to modulate speeds, significantly reducing energy consumption and noise compared to standard PSC motors. When diagnosing a 16-pin 2.3 series ECM, this variable speed HVAC motor is the direct industrial-grade solution for restoring the precise air delivery your customers expect.
- OEM Compatibility: This is a genuine MOT09249 programmed for direct drop-in installation on compatible Trane and American Standard units, eliminating communication errors with the system control board.
- Advanced Efficiency: The 1/2 HP variable motor design optimizes power consumption by adjusting output to match real-time demand, which lowers operational costs and reduces wear on other system components.
- Quiet Operation: By utilizing soft-start technology and avoiding the abrupt "on/off" cycles of single-speed motors, this Trane replacement part provides much quieter airflow and consistent room temperatures.
- NEMA Frame Construction: Built on a standard 48-frame chassis with a TEAO (Totally Enclosed Air-Over) enclosure to protect internal windings from dust and debris while ensuring proper heat dissipation during heavy duty cycles.
Common Questions
Can I use a universal ECM as a substitute for the MOT9249?
While universal motors exist, the Trane MOT9249 is a pre-programmed motor. Trane systems often use specific communication protocols between the board and the module. Using a generic motor may result in incorrect air volumes (CFM) or the unit failing to ramp up properly, leading to potential coil freeze-ups or high-limit trips.
What are the symptoms of a failing ECM module vs. the motor itself?
If you hear a grinding noise, it is likely the bearings. However, if the motor is not turning but you have line voltage and a 24V signal at the connector, the electronic control module (often the 2.3 or 2.5 series) has likely failed due to voltage surges or moisture. This assembly includes the motor and the module to ensure a complete fix.
Does this motor require a start capacitor?
No. As an electronically commutated motor, the MOT9249 manages its own internal starting and running phases through the integrated module, which converts the 115V 1PH input into the 3-phase DC signal needed to drive the motor efficiently.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
