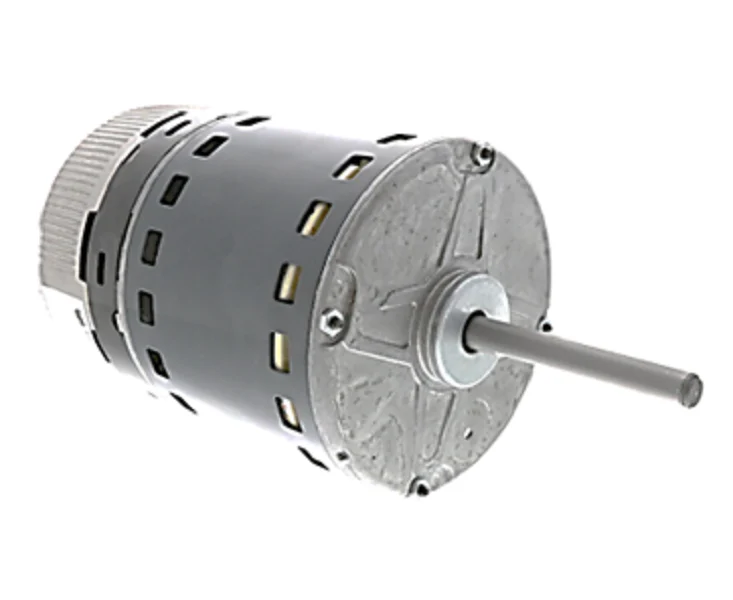

Trane MOT9231 Motor
The Trane MOT9231 is a high-performance 1 HP ECM blower motor engineered for precision airflow control in residential and light commercial HVAC systems. Operating at 115/230V, this constant torque motor (X13 style) serves as a direct OEM replacement for specific Trane and American Standard air handlers and furnaces. As an electronically commutated motor, it delivers significantly higher efficiency compared to standard PSC motors by adjusting power consumption based on static pressure requirements. The MOT09231 is designed to maintain consistent CFM, ensuring optimal heat exchange across the evaporator coil and reducing system wear. For technicians performing a HVAC motor replacement, this unit features a NEMA 48 frame and integrated electronic control module, eliminating the need for external capacitors. Proper ECM motor troubleshooting involves verifying line voltage and 24V signal inputs to the 5-pin connector to ensure correct variable speed blower motor performance and system static pressure balance.
Key Benefits for HVAC Contractors:- Dual Voltage Versatility: Handles 115V or 230V single-phase applications, reducing truck stock requirements.
- High Energy Efficiency: The brushless DC design provides up to 75% efficiency, lowering utility costs for end-users.
- Plug-and-Play Integration: Direct OEM fit for Trane MOT09231 ensures electrical connectors and mounting points align perfectly with original specifications.
- Soft Start Technology: Reduces peak amperage draw and minimizes duct noise during startup cycles.
- Reliable Torque Delivery: Maintains programmed RPM even as filter loading increases static pressure.
Can I replace a PSC motor with this ECM motor?
The MOT9231 is an OEM ECM motor designed for specific control boards. Conversion from PSC to ECM requires specific wiring harnesses and logic controllers; this unit is intended as a direct replacement for existing X13 ECM motors.
Is the control module available separately?
This model is typically sold as a complete motor and module assembly to ensure the internal programming matches the airflow requirements of the specific Trane air handler model.
How do I verify the motor is faulty?
Check for high voltage at the power plug and 24V signals at the communication pins. If voltage is present but the shaft does not rotate or "cogging" is felt, the internal electronic module has likely failed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
