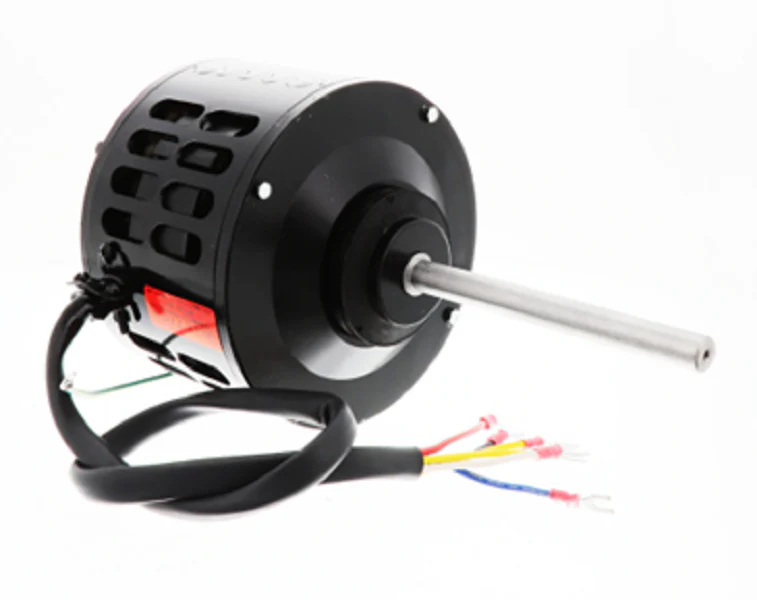

Trane MOT6803 Motor
The Trane MOT6803 Motor is a high-performance 1/4 HP 277V 3-speed motor engineered for precision performance in commercial HVAC applications. Designed as an OEM replacement for specific Trane fan coil units and air handlers, this PSC (Permanent Split Capacitor) motor operates at 1075 RPM, providing reliable airflow management across multiple speed taps. The 277-volt single-phase configuration is standard for industrial electrical systems, ensuring seamless integration with existing terminal blocks and mounting brackets. Technicians should note the NEMA 48 frame diameter and the double-shaft or single-shaft configuration specific to the MOT6803 service part number to ensure proper blower wheel alignment. Utilizing high-grade internal bearings, this direct drive blower motor minimizes mechanical friction and thermal buildup, extending the service life of the fan assembly. When performing a field replacement, verify the capacitor MFD rating and voltage requirements to maintain peak efficiency and prevent premature winding failure during high-static operation.
- Multi-Speed Versatility: Three distinct speed taps allow for precise CFM adjustment to meet specific zone requirements.
- OEM Compatibility: Precision-engineered for Trane MOT06803 specifications, ensuring exact fitment without bracket modification.
- High-Voltage Efficiency: Specialized 277V winding design optimized for commercial power grids and reduced amperage draw.
- Rugged Construction: Built with high-temperature insulation to withstand the rigorous duty cycles of commercial air handling units.
Common Questions
What are the rotation and shaft dimensions for the MOT6803?
The MOT6803 typically features a standard shaft diameter for Trane blower wheels, but technicians should always verify the rotation direction (CW or CCW) from the lead end to ensure proper airflow orientation before installation.
Which capacitor should be used with this 277V motor?
This 3-speed HVAC motor requires a specific run capacitor (typically measured in microfarads) rated for at least 370V or 440V to handle the 277V primary input without dielectric breakdown.
Can this motor replace a generic 1/4 HP motor?
While the horsepower matches, the Trane MOT6803 is task-specific. Always match the voltage, frame size, and shaft length to prevent mechanical interference or electrical mismatch in the fan cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
