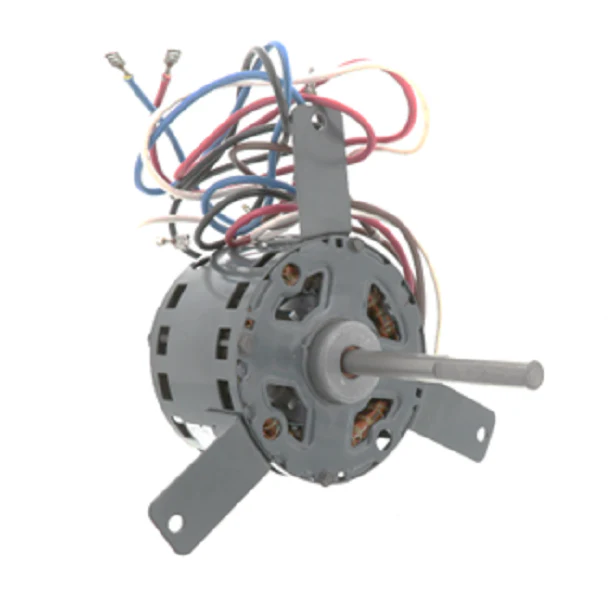

Trane MOT4596 Motor
The Trane MOT4596 Motor is a high-performance 1/15HP blower motor engineered for precise climate control in commercial and industrial HVAC applications. Operating at 277V, this 1050RPM unit is designed for multi-speed functionality, featuring a 3-speed configuration that allows technicians to balance airflow requirements with energy efficiency. This OEM replacement motor ensures drop-in compatibility and maintains the factory-specified performance of Trane air handlers and fan coil units, eliminating the clearance and alignment issues often associated with universal alternatives.
Built with a robust frame and high-quality internal windings, the Trane MOT4596 is optimized for continuous duty cycles. The 3-speed blower motor design provides the flexibility needed to tune system performance to the specific static pressure demands of the ductwork. As a genuine Trane replacement part, it adheres to strict electrical tolerance standards, ensuring reliable startup torque and quiet operation. Field technicians should verify the wiring schematic and capacitor requirements prior to installation to ensure seamless integration into the existing control board circuit.
Key Benefits- OEM Precision: Direct replacement for Trane 1/15HP 277V motors, ensuring exact physical and electrical alignment.
- Variable Airflow: The 3-speed design enables customized fan speed settings for optimized building comfort.
- Industrial Durability: Rated for 277V power supplies typically found in commercial lighting and HVAC circuits.
- Efficient Performance: Maintains a consistent 1050RPM to provide stable airflow across evaporator coils.
- Is this motor compatible with 208-230V systems? No, the MOT4596 is specifically wound for 277V applications; applying lower voltage will lead to torque failure and winding damage.
- How do I identify the speed taps for this 3-speed motor? Refer to the lead wire color-coding on the motor nameplate or the equipment’s wiring diagram to correctly identify high, medium, and low speed terminals.
- What frame size does this motor use? This unit uses a standard frame compatible with Trane mountings, but shaft length and diameter should be verified against the existing fan wheel hub.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
