Trane MOT2360 Motor

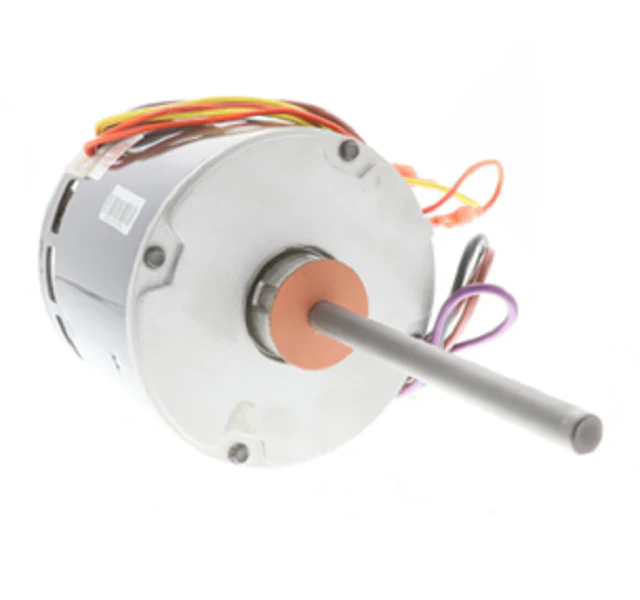

The Trane MOT2360 Motor is a high-performance 1/2 HP condenser fan motor engineered for heavy-duty HVAC applications. Operating at 208-230V and a nominal 1625 RPM, this single-phase, 60Hz unit is a critical OEM replacement part for maintaining optimal head pressure and heat transfer in Trane and American Standard residential and light commercial equipment. Built on a 48Y frame with a 1/2-inch shaft diameter and a 6-inch shaft length, the MOT2360 features a dual-flat shaft design to ensure secure blower wheel or fan blade attachment, preventing slippage under high torque loads.
This permanently lubricated sleeve bearing motor is thermally protected and designed for continuous air-over (CAO) cooling, making it ideal for the demanding duty cycles of outdoor condensing units. With a 4.1 Amp rating and reversible rotation capabilities, it offers the versatility required for diverse field installations. To ensure peak electrical efficiency and protect the windings from premature failure, technicians should pair this motor with a new 5 MFD / 370V capacitor during installation.
Key Benefits- Precise RPM Matching: The 1625 RPM specification ensures correct airflow across the coils, maintaining system SEER ratings and preventing compressor slugging.
- OEM Compatibility: As a genuine Trane replacement motor, it fits 48-frame mounts perfectly without the need for bracket modifications or shaft cutting.
- Enhanced Thermal Protection: Internal sensing prevents motor burnout during high-ambient operation or in the event of a restricted condenser coil.
- Rugged Construction: Engineered for outdoor environments, the CAO design utilizes the fan's own airflow to manage heat, extending the service life of the internal components.
Is the Trane MOT2360 a direct replacement for MOT02360?
Yes, the MOT2360 and MOT02360 are interchangeable part numbers. This motor is the current standard for systems requiring a 1/2 HP, 208-230V, 1625 RPM service part on a 48-frame chassis.
What capacitor is required for this motor?
This motor requires a 5.0 MFD / 370V AC run capacitor. It is standard industry practice to replace the capacitor whenever the fan motor is swapped to ensure reliable starting and running amperage.
Can this motor be used in both CW and CCW applications?
Yes, the MOT2360 is lead-reversible, allowing for both Clockwise (CW) and Counter-Clockwise (CCW) rotation depending on the specific fan blade pitch and unit configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
