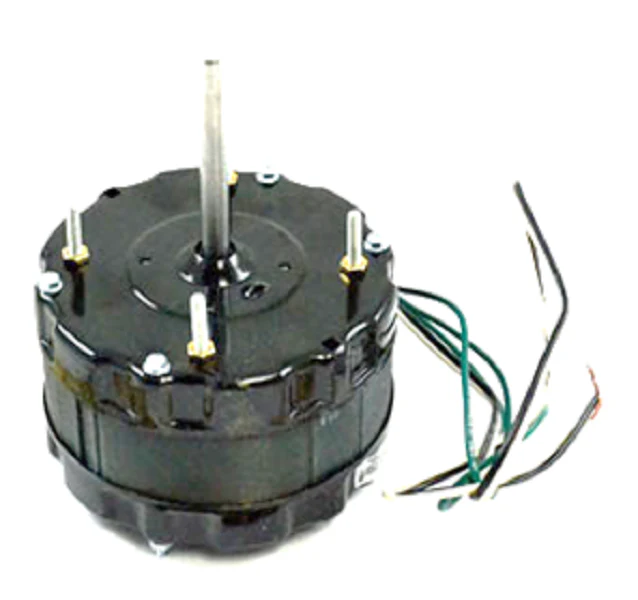

Trane MOT2230 Motor
The Trane MOT2230 is a direct-drive OEM replacement motor designed for high-reliability performance in specific Trane and American Standard air handling units and fan coil systems. Operating at 120V, this 1/12 HP fan motor runs at a fixed 1000 RPM, ensuring consistent airflow and static pressure management required for residential and light commercial HVAC applications. Built with a shaded pole or permanent split capacitor design (depending on the specific revision), it features an open ventilated enclosure to facilitate heat dissipation during continuous operation. The motor includes high-grade internal bearings to minimize mechanical friction and noise, which is critical for maintaining quiet indoor environments. When replacing this unit, verify the 5-inch diameter and shaft dimensions to ensure mechanical alignment with the existing blower wheel assembly. Precise electrical specifications and direct OEM compatibility make this motor a standard choice for technicians seeking to restore system factory performance without the field modifications required by universal motors.
Key Technical Benefits
- Optimized Airflow: The 1000 RPM output is calibrated for specific blower housing curves to maintain CFM requirements.
- Verified Compatibility: As a genuine Trane MOT2230 component, it ensures proper mounting hole alignment and electrical lead lengths.
- Reliable Load Management: Rated at 1/12 HP, this motor handles the specific torque demands of compatible blower wheels without overheating.
- Standard 120V Control: Simplifies integration with existing HVAC control boards and power supplies.
Common Installation Questions
What are the primary Trane MOT2230 specifications?
This is a 120-volt, 1/12 horsepower motor designed for 1000 RPM operation. It is typically used in fan coil units where precise, low-horsepower output is necessary for efficient air movement.
Can I use a universal motor instead of the MOT2230?
While universal motors exist, using a genuine OEM furnace motor like the MOT2230 ensures the shaft diameter, rotation direction, and mounting bracket match exactly, reducing installation time and preventing premature failure caused by improper load balancing.
How do I verify if this motor is failing?
Technicians should check for 120V at the leads, verify the capacitor if applicable, and inspect for seized bearings or high amperage draw. Replacing with the Trane replacement motor ensures the system returns to its original engineering specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
