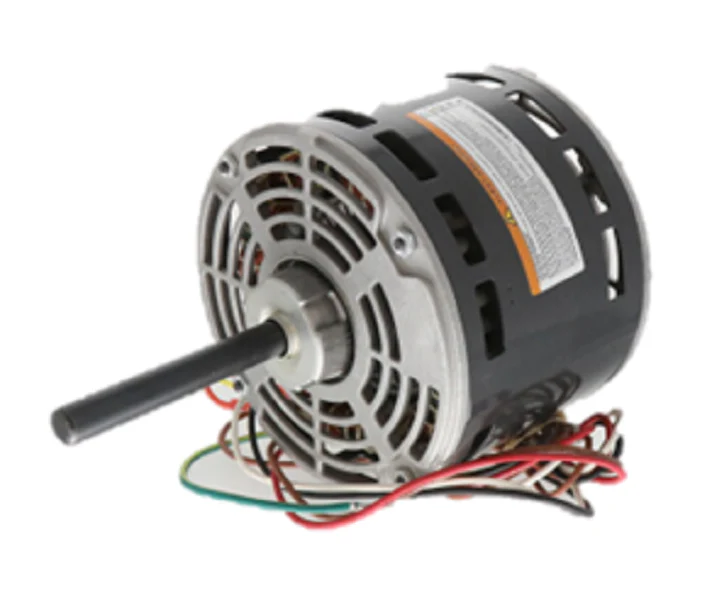

Trane MOT19454 Motor
The Trane MOT19454 Motor is a high-performance, direct drive blower motor engineered for precise airflow management in residential and light commercial HVAC applications. Operating at 200-230V on a single-phase (1PH) power supply, this 1/2 HP motor provides the necessary torque for demanding air handlers and packaged units. This 2-speed motor allows for flexible system tuning, providing 1030 RPM for standard operation and supporting higher fan speeds to meet peak demand requirements.
Designed with a 48Y frame and an open air over (OAO) enclosure, the Trane MOT19454 ensures efficient thermal dissipation during continuous operation. The motor features a 1/2-inch shaft diameter with a 3.5-inch extension, making it a standard fit for most belly band mounting configurations. As a genuine OEM replacement motor, it maintains factory-spec performance and is a drop-in solution for technicians looking to restore system static pressure and CFM delivery without the troubleshooting hurdles associated with universal alternatives.
Key Benefits- Dual-Speed Capability: Features two operational speeds (1030 RPM and 1200 RPM) to support varying airflow requirements and enhance humidity control.
- OEM Precision: Direct replacement for Trane MOT19454 ensures exact electrical characteristics and physical dimensions, eliminating field modifications.
- Rugged Enclosure: The OAO (Open Air Over) design utilizes the system's own air stream for cooling, extending the operational life of the internal windings.
- Standardized Frame: The NEMA 48 frame and standardized shaft dimensions facilitate quick installation in existing motor brackets or belly bands.
- Wide Voltage Range: Optimized for stable performance across 200V to 230V electrical service common in modern HVAC infrastructure.
What capacitor is required for the MOT19454?
This motor typically requires a 10.0 MFD / 370V AC run capacitor for optimal phase shift and torque. Always verify the rating on the existing capacitor or motor nameplate before installation.
Can this motor replace a single-speed 1075 RPM motor?
The MOT19454 is a 2-speed motor. While it may fit mechanically, you must ensure the control board and wiring harness support multi-speed switching to avoid damage to the windings.
What is the rotation direction for this unit?
The motor is designed to support both CW and CCW rotation depending on the specific lead configuration, allowing for versatile installation across various blower housing orientations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
