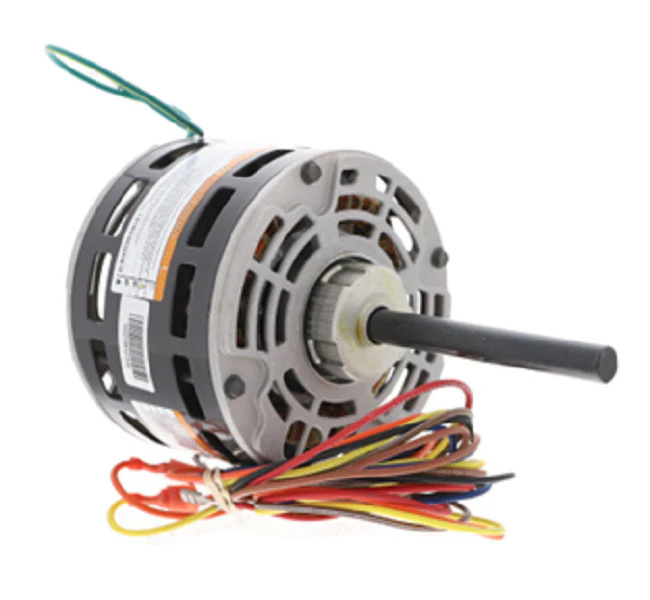

Trane MOT19453 Motor
The Trane MOT19453 Motor is a high-performance, genuine OEM replacement engineered for 265V commercial HVAC systems, specifically Trane PTAC units and BCHD/BCVD blower coil air handlers. This 1/12 HP fan motor operates at a nominal 1030 RPM and features a 4-speed configuration, allowing for precise airflow modulation and system efficiency. Built with an OAO (Open Air Over) enclosure, it is designed for optimal heat dissipation during continuous operation within the air stream.
For contractors, the NEMA 48 frame and belly band mounting ensure a straightforward drop-in replacement, maintaining the mechanical integrity of the original equipment. This multi-speed induction motor provides the reliable torque required to drive centrifugal blowers in high-static environments. Utilizing Trane replacement parts like the MOT19453 ensures full compatibility with existing 265-volt control boards and wiring harnesses, preventing the common failure points associated with generic aftermarket alternatives.
Key Benefits:
- Precise Airflow Control: The 4-speed design allows the system to balance CFM requirements for varying load conditions.
- OEM Compatibility: Guaranteed to match the electrical characteristics and 1/12 HP load profile of Trane 265V equipment.
- Industrial Build Quality: Features an Open Air Over design to maximize motor life through effective thermal management.
- Simplified Installation: Standardized 48 frame size and belly band mount facilitate fast field exchange.
Common Questions:
What are the primary applications for the Trane MOT19453?
This motor is primarily used as a PTAC fan motor and in Trane Blower Coil Air Handlers (Models BCHD and BCVD). It is specific to 265V electrical configurations commonly found in hospitality and commercial facilities.
Can this motor replace a single-speed or 2-speed motor?
While the Trane MOT19453 offers four speeds, it must be used with a 4-speed capable controller or wired specifically to the required speed tap. Check your unit’s wiring diagram to ensure the 265v 1/12hp 1030rpm 4spd motor matches your original part's specifications.
What type of mounting does the MOT19453 require?
It utilizes a belly band mount. It does not include integrated mounting studs, so the existing metal strap or original mounting bracket must be used for secure installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $408.98
-65%$408.98
$143.14Trane MOT19453 Motor
The Trane MOT19453 Motor is a high-performance, genuine OEM replacement engineered for 265V commercial HVAC systems, specifically Trane PTAC units and BCHD/BCVD blower coil air handlers. This 1/12 HP fan motor operates at a nominal 1030 RPM and features a 4-speed configuration, allowing for precise airflow modulation and system efficiency. Built with an OAO (Open Air Over) enclosure, it is designed for optimal heat dissipation during continuous operation within the air stream.
For contractors, the NEMA 48 frame and belly band mounting ensure a straightforward drop-in replacement, maintaining the mechanical integrity of the original equipment. This multi-speed induction motor provides the reliable torque required to drive centrifugal blowers in high-static environments. Utilizing Trane replacement parts like the MOT19453 ensures full compatibility with existing 265-volt control boards and wiring harnesses, preventing the common failure points associated with generic aftermarket alternatives.
Key Benefits:
- Precise Airflow Control: The 4-speed design allows the system to balance CFM requirements for varying load conditions.
- OEM Compatibility: Guaranteed to match the electrical characteristics and 1/12 HP load profile of Trane 265V equipment.
- Industrial Build Quality: Features an Open Air Over design to maximize motor life through effective thermal management.
- Simplified Installation: Standardized 48 frame size and belly band mount facilitate fast field exchange.
Common Questions:
What are the primary applications for the Trane MOT19453?
This motor is primarily used as a PTAC fan motor and in Trane Blower Coil Air Handlers (Models BCHD and BCVD). It is specific to 265V electrical configurations commonly found in hospitality and commercial facilities.
Can this motor replace a single-speed or 2-speed motor?
While the Trane MOT19453 offers four speeds, it must be used with a 4-speed capable controller or wired specifically to the required speed tap. Check your unit’s wiring diagram to ensure the 265v 1/12hp 1030rpm 4spd motor matches your original part's specifications.
What type of mounting does the MOT19453 require?
It utilizes a belly band mount. It does not include integrated mounting studs, so the existing metal strap or original mounting bracket must be used for secure installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
