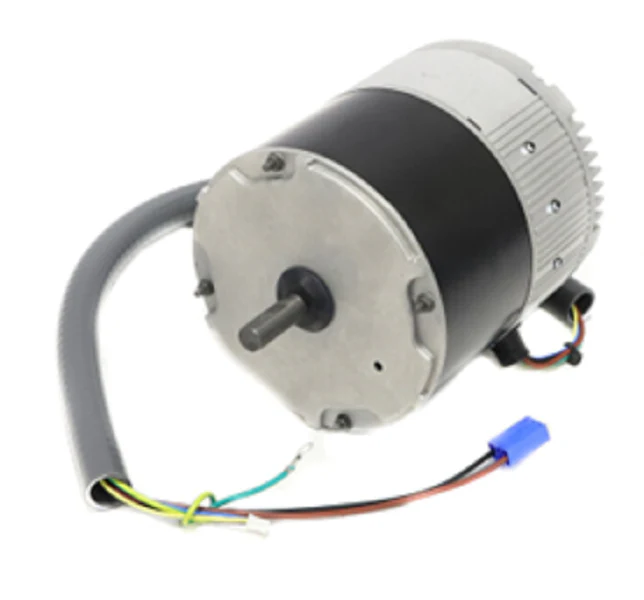

Trane MOT19352 Motor
The Trane MOT19352 Motor is a high-performance 1/3 HP variable ECM motor engineered for precision air handling in advanced Trane and American Standard HVAC systems. This direct replacement for MOT16196 operates on a 208-230V single-phase power supply at 50/60Hz, providing the variable speed modulation required for modern high-efficiency heat pumps and air conditioners. Built with a durable 48-frame TEAO (Totally Enclosed Air-Over) design, this motor is specifically rated for outdoor condenser applications, maintaining a wide operating temperature range from -20°F to 140°F.
As a genuine OEM Trane blower motor, the MOT19352 includes the integrated ECM motor module, ensuring the system’s control board can manage airflow levels with pinpoint accuracy. The CCWLE (Counter Clockwise Lead End) rotation and screw-type vertical shaft-down mounting profile allow for a seamless drop-in installation on compatible models such as the 4TTV8X60A1000AA and 4TWV0X36A1000AA. By utilizing electronically commutated technology, this motor significantly reduces amperage draw compared to standard PSC motors, optimizing overall energy efficiency and system longevity.
Key Benefits for Technicians:
- Universal Voltage Compatibility: Rated for both 208V and 230V systems at 50/60Hz, covering a broad range of residential and light commercial grid requirements.
- High-Torque Performance: Delivers a design torque of 26.7 lb-ft and variable speeds ranging from 200 to 1200 RPM for precise CFM management.
- Rugged Enclosure Specs: The TEAO frame and Class B insulation provide superior protection against moisture and debris in outdoor environments.
- Direct OEM Supersession: Engineered as a direct replacement for MOT16196, MOT16195, and D156799P02, ensuring electrical and physical compatibility without field modifications.
Common Questions:
Is the ECM module included with the Trane MOT19352?
Yes, this motor is supplied as a complete assembly including the factory-programmed ECM motor module to ensure out-of-the-box compatibility with the system’s serial communication protocols.
What are the symptoms of a failing MOT19352 condenser motor?
Technicians should look for high-cycle error codes on the main control board, excessive bearing noise, or a motor that fails to ramp up to its target RPM despite receiving the proper DC signal from the board.
Can this motor be used in indoor air handler applications?
While rated as an outdoor-enclosure motor, the MOT19352 is primarily utilized in high-efficiency outdoor condenser units and heat pumps. Always verify the specific frame size and rotation requirements against the original equipment nameplate before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
