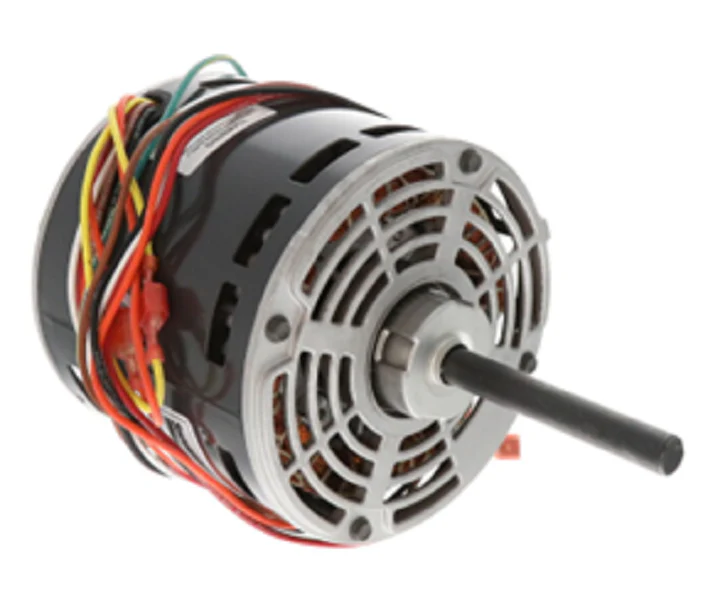

Trane MOT19026 Motor
The Trane MOT19026 Motor is a high-performance OEM replacement motor engineered for commercial and industrial HVACR applications requiring a precise 1/3 HP output. Optimized for efficiency in demanding environments, this 460V single-phase motor operates with two-speed functionality, delivering a base speed of 1080 RPM to maintain consistent static pressure and airflow. Built with a NEMA 48 frame and an Open Air Over (OAO) enclosure, the motor is designed for maximum cooling through the airstream. The belly band mounting configuration and 0.5-inch shaft diameter ensure a direct fits for a wide variety of blower assemblies and fan coils. As a genuine Trane replacement part, it eliminates the balancing and mounting issues often associated with universal motors, providing heavy-duty reliability for technicians servicing 460V HVAC systems.
Key Benefits:
- Dual-Speed Versatility: Provides flexibility for variable load requirements and improved system staging.
- Direct OEM Fit: Exact physical specifications for Trane HVAC equipment reduce labor time during installation.
- Industrial Voltage Rating: Specifically designed for 460V 1ph electrical systems, ensuring proper torque and thermal protection.
- OAO Enclosure: Open Air Over design facilitates optimal heat dissipation for continuous duty cycles.
Common Questions:
What are the wiring requirements for the two-speed operation?
The MOT19026 utilizes specific lead configurations to toggle between the high-speed 1080 RPM setting and the secondary lower speed. Always refer to the schematic on the motor housing to ensure proper capacitor matching and speed tap connection.
Is this motor compatible with 380-415V systems?
Yes, this professional-grade motor is dual-rated for 380-415V and 460V at both 50Hz and 60Hz, making it suitable for international industrial applications and diverse site power conditions.
Can I use a belly band mount with this 48-frame motor?
Absolutely. The smooth cylinder design of the 48 frame allows for secure belly band or flex-mount installation into existing blower housings without internal bracket interference.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Trane MOT19026 Motor
The Trane MOT19026 Motor is a high-performance OEM replacement motor engineered for commercial and industrial HVACR applications requiring a precise 1/3 HP output. Optimized for efficiency in demanding environments, this 460V single-phase motor operates with two-speed functionality, delivering a base speed of 1080 RPM to maintain consistent static pressure and airflow. Built with a NEMA 48 frame and an Open Air Over (OAO) enclosure, the motor is designed for maximum cooling through the airstream. The belly band mounting configuration and 0.5-inch shaft diameter ensure a direct fits for a wide variety of blower assemblies and fan coils. As a genuine Trane replacement part, it eliminates the balancing and mounting issues often associated with universal motors, providing heavy-duty reliability for technicians servicing 460V HVAC systems.
Key Benefits:
- Dual-Speed Versatility: Provides flexibility for variable load requirements and improved system staging.
- Direct OEM Fit: Exact physical specifications for Trane HVAC equipment reduce labor time during installation.
- Industrial Voltage Rating: Specifically designed for 460V 1ph electrical systems, ensuring proper torque and thermal protection.
- OAO Enclosure: Open Air Over design facilitates optimal heat dissipation for continuous duty cycles.
Common Questions:
What are the wiring requirements for the two-speed operation?
The MOT19026 utilizes specific lead configurations to toggle between the high-speed 1080 RPM setting and the secondary lower speed. Always refer to the schematic on the motor housing to ensure proper capacitor matching and speed tap connection.
Is this motor compatible with 380-415V systems?
Yes, this professional-grade motor is dual-rated for 380-415V and 460V at both 50Hz and 60Hz, making it suitable for international industrial applications and diverse site power conditions.
Can I use a belly band mount with this 48-frame motor?
Absolutely. The smooth cylinder design of the 48 frame allows for secure belly band or flex-mount installation into existing blower housings without internal bracket interference.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
