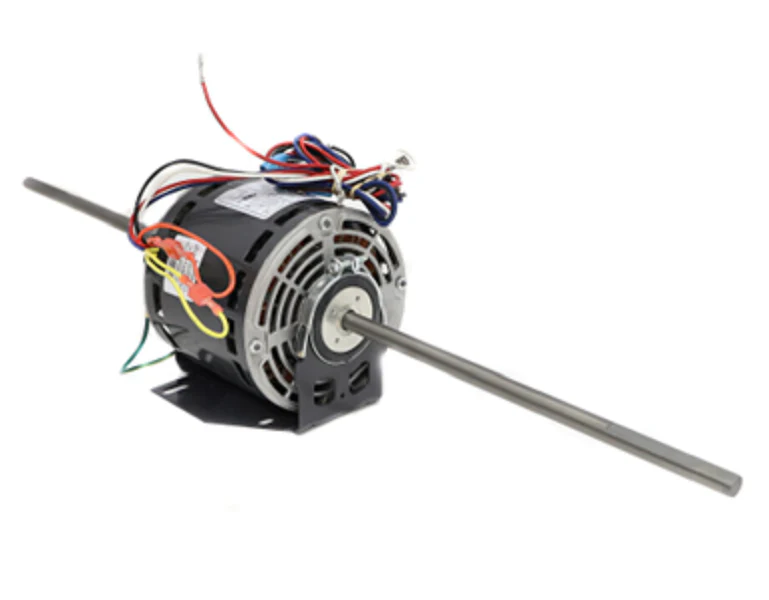

Trane MOT19018 Motor
Maintaining proper airflow in Trane and American Standard air handlers requires a reliable blower assembly. The Trane MOT19018 Motor is a genuine OEM component featuring a 1/3 HP induction motor design engineered for 115V single-phase systems. Operating at a 1100 RPM rated speed, this 48-frame motor utilizes three distinct speed taps to allow for precise airflow modulation across heating and cooling cycles. The dual-shaft configuration and resilient mounting type make it a direct-drop replacement for several packaged units and furnaces, ensuring the internal blower wheel maintains optimal static pressure. By installing an OEM Trane replacement motor, technicians ensure the electrical lead lengths and connector pins match the factory control board, preventing the common wiring complications found with universal "rescue" motors. This multi-speed HVAC motor is built with an open air over (OAO) enclosure to facilitate cooling during continuous operation, protecting the internal windings from premature failure due to thermal stress. For a clean installation, verify your existing motor's shaft diameter and frame size against these specific MOT19018 furnace motor specs.
Key Benefits- Genuine OEM Compatibility: Verified as a direct replacement for Trane and American Standard 48-frame blower assemblies, ensuring correct shaft length and rotation.
- Three-Speed Versatility: Features 3 distinct speed taps for optimized CFM delivery during different operational stages.
- Resilient Mounting: Designed for vibration-dampening resilient mounts to reduce mechanical noise and cabinet resonance.
- Efficient Thermal Design: Open Air Over (OAO) enclosure allows the moving air stream to cool the motor, increasing operational life.
- Dual-Shaft Configuration: Specifically engineered for dual-blower or specialized shaft-driven HVAC configurations.
What are the wiring lead colors for the speed taps?
Standard Trane color coding usually designates Black for High speed, Blue for Medium, and Red for Low, with White as the Common line. Always verify against the specific wiring schematic found on your unit’s service panel before making connections.
Can I use this MOT19018 motor to replace a variable speed ECM?
No. This is a standard 115V induction motor. It is not a drop-in replacement for ECM or constant-torque programmed modules. Attempting to bridge a standard PSC or induction motor to an ECM control board will cause immediate component failure.
Do I need to replace the run capacitor with this motor?
Yes, it is standard industry practice to replace the capacitor whenever installing a new blower motor. Using an old capacitor can prevent the motor from reaching its rated 1100 RPM or lead to excessive amp draw and overheating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
