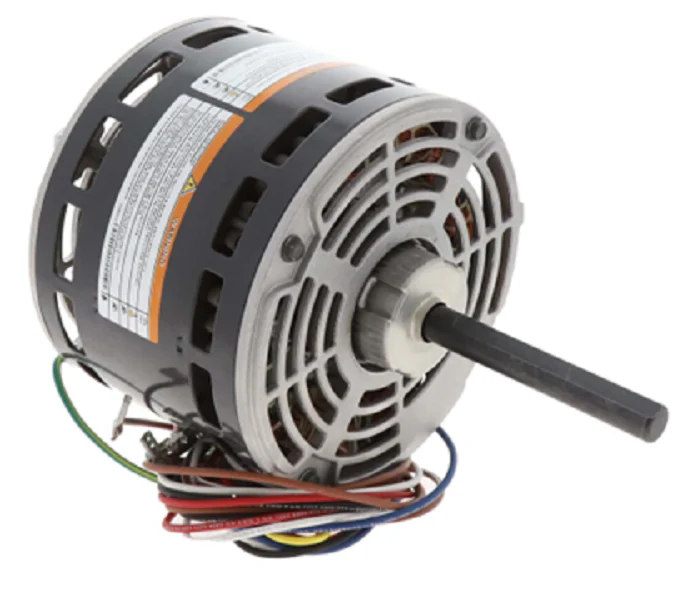

Trane MOT19017 Motor
The Trane MOT19017 is a reliable 1/3 HP direct drive blower motor designed for specific application in residential air handlers and furnaces. Operating at 120V and a nominal 1030 RPM, this 3-speed induction motor provides versatile airflow control, allowing for precise static pressure adjustments across diverse ductwork configurations. As a permanent split capacitor (PSC) motor, it requires a 5 MFD / 370V capacitor (sold separately) to maintain optimal torque and efficiency. Its NEMA 48 frame and open air-over (OAO) enclosure ensure adequate thermal dissipation during continuous operation. When replacing a failed OEM Trane blower motor, the MOT19017 offers a drop-in fit with standard 5.6-inch diameter mounting, eliminating the need for field modifications. This motor features high-grade ball bearings and a reversible rotation capability, making it a staple for contractors maintaining Trane and American Standard HVAC systems where motor lead wire compatibility and CFM output are critical for system performance.
Key Benefits
- Multi-Speed Versatility: The 3-speed taps allow for fine-tuned air balancing to meet specific static pressure requirements.
- OEM Compatibility: Designed as a direct Trane replacement motor, ensuring identical shaft length, diameter, and mounting bolt patterns.
- Thermal Protection: Features internal automatic reset thermal overload protection to prevent winding failure during high-amperage events.
- Reliable Performance: Engineered for continuous duty cycles in high-demand residential heating and cooling applications.
Common Questions
What is the correct run capacitor for the MOT19017?
This motor requires a 5 MFD 370 Volt capacitor. Always verify the capacitor rating on the new motor's nameplate, as using an incorrectly sized capacitor will lead to overheating and premature winding failure.
Can this motor replace a higher horsepower blower motor?
No, you should never downsize horsepower. This 1/3 HP motor should only replace motors with an equivalent or lower horsepower rating to ensure the blower wheel reaches the required RPM for proper heat exchange.
Is this motor reversible in the field?
Yes, the Trane MOT19017 features standard lead-switching connectors, allowing local technicians to change the rotation direction (CW or CCW) to match the existing blower housing requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
