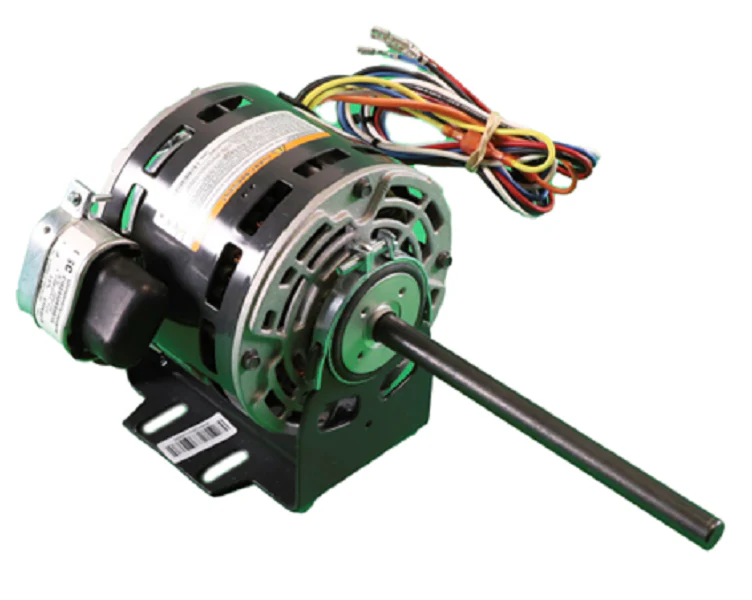

Trane MOT18995 Motor
When you're out in the field and need a reliable Trane MOT18995 replacement motor, you need specs that match the original air handler configuration exactly. This induction motor is a 1/30 HP, 115V, single-phase unit operating at 1100 RPM. Designed specifically for HVAC applications, it features a 3-speed motor design, allowing for precise airflow calibration to meet specific system load requirements. The 48-frame housing and resilient mount ensure the motor fits standard blower assemblies while minimizing vibration and mechanical noise during operation.
This HVAC blower motor is engineered for versatility with its reversible CW/CCW rotation capabilities. Techs will appreciate the 1/2-inch shaft diameter and standard 6.37-inch shaft length, which simplifies the swap-out process for OEM Trane parts. Whether you’re dealing with a residential air handler or a light commercial terminal device, the Trane condenser fan motor provides a direct drop-in solution for the discontinued MOT1878 model. Ensure your capacitor is tested and within spec during the install to maintain optimal amp draw and performance across all three speed taps.
Key Benefits:- Direct OEM Fit: Drop-in replacement for the common MOT1878 part number, ensuring mounting holes and shaft dimensions line up perfectly.
- Multi-Speed Flexibility: 3-speed capability allows for better control of static pressure and cfm delivery.
- Rugged Frame Design: Built on a standard 48-frame chassis with a 1/2" shaft for broad compatibility across Trane and American Standard units.
- Reversible Rotation: Supports both clockwise and counter-clockwise rotation, adaptable to various blower wheel orientations.
- Class F Insulation: Designed to withstand the high-temperature environments typical of compact HVAC cabinets.
Is the MOT18995 compatible with older MOT1878 units?
Yes, this is the designated direct replacement for the MOT1878. All electrical specs, including the 115V rating and 1/30 HP output, are identical to the original equipment.
Do I need to replace the capacitor when installing this motor?
While not always required, technicians highly recommend installing a new capacitor to ensure the motor starts cleanly and operates within its rated amp draw, preventing premature failure of the new windings.
Can this motor be mounted in any orientation?
This motor utilizes a resilient base and is rated for multiple mounting positions, provided the lead wires are positioned to prevent moisture ingress into the motor housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
