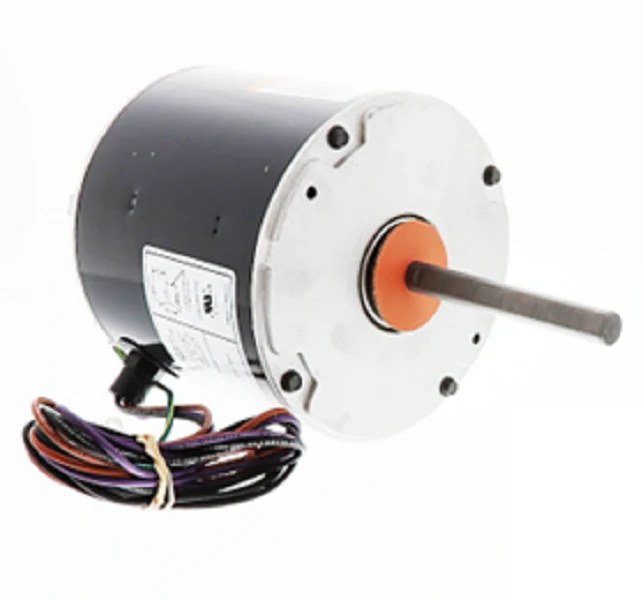

Trane MOT18709 Motor
The Trane MOT18709 is a high-performance HVAC condenser fan motor engineered for demanding commercial and industrial applications. This 48-frame motor features a versatile multi-voltage rating of 460/380/415V, operating at a steady 1100 RPM. With a 0.4 HP output, this direct-drive unit is a critical component for maintaining head pressure control and ensuring efficient heat transfer across the condenser coil. Built for durability in extreme environments, it utilizes a totally enclosed design to protect internal windings from moisture and debris. When performing a Trane motor replacement, verifying the NEMA frame size and shaft dimensions is essential for a precise fit. This OEM Trane electric motor ensures seamless integration with existing fan blades and mounting brackets, reducing downtime during emergency service calls. Technicians should confirm capacitor requirements and amperage draws against the nameplate to ensure peak electrical performance and system reliability.
- Multi-Voltage Compatibility: Supports 460V, 380V, and 415V configurations for diverse field installs.
- Optimized Airflow: Delivers a consistent 1100 RPM for stable refrigerant cooling cycles.
- Industrial Build: 48-frame construction provides a robust mounting footprint for commercial HVAC maintenance.
- Efficient Heat Dissipation: Engineered for high-ambient operations typical of rooftop condenser units.
Common Questions
What are the wiring diagrams for This 3-phase Trane motor?
The lead wires are color-coded to standard Trane schematics; always refer to the specific unit's wiring trace to ensure proper rotation and phase alignment.
Can I use an aftermarket 48-frame motor instead of the MOT18709?
While physical dimensions may match, the Trane MOT18709 Motor is spec'd for specific torque curves and mounting depths required for OEM fan shroud clearance.
What is the proper rotation for this condenser motor?
This motor is typically CWLE (Clockwise Lead End), but technicians must verify the fan blade pitch to ensure correct airflow direction across the coil.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
