Trane MOT18698 Motor+Module

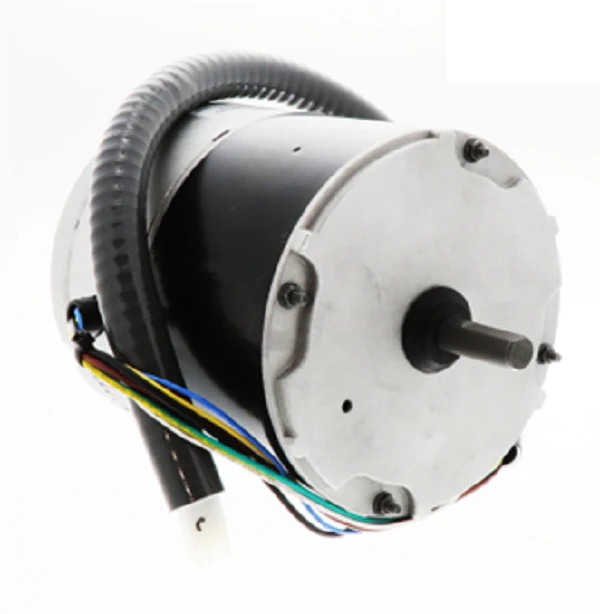

The Trane MOT18698 is a high-efficiency, 1/3 HP 230V ECM OD motor and module designed for precise airflow control in outdoor condensing units and heat pumps. As an OEM replacement motor, this electronically commutated motor is a factory-authorized match for a wide range of high-SEER platforms, including the Trane XL15i, XL16i, and XV18 series. Utilizing advanced brushless DC technology, the MOT18698 operates within a variable speed range of 200 to 1200 RPM, allowing the system to modulate fan speed based on real-time head pressure and cooling demand. This service first OEM part directly replaces legacy components like the MOT13793, MOT13402, and MOT12005. Designed with a NEMA 48 frame and a totally enclosed air-over (TEAO) housing, it ensures reliable variable speed performance in demanding environment conditions. This ECM condenser fan motor features soft-start technology to reduce electrical surges and mechanical stress during startup, maintaining quiet operation and consistent system pressures.
Key Benefits:- Precision Modulation: Variable speed logic allows for tighter temperature and humidity control compared to standard PSC motors.
- Direct OEM Integration: Pre-programmed motor control module ensures seamless communication with the existing unit controller without field programming.
- Enhanced Efficiency: ECM design significantly reduces amperage draw, particularly during low-speed operation in dehumidification cycles.
- Quiet Operation: Designed to lower outdoor ambient noise by operating at reduced RPMs when full cooling capacity is not required.
- Rugged Construction: Features CCW lead end rotation and a standard 0.5-inch shaft for a direct mechanical fit into OEM fan blade assemblies.
- Does this motor require a run capacitor? No, ECM technology utilizes internal electronics to manage phase shifting, eliminating the need for an external capacitor.
- Is the control module included? Yes, the MOT18698 is a complete assembly that includes both the 1/3 HP motor and the factory-programmed integrated module.
- What are the primary indicators of a failed module? Check for 230V at the 5-pin power connector and 24V communication signals; if the motor spins freely by hand but fails to start under load, the module has likely failed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
