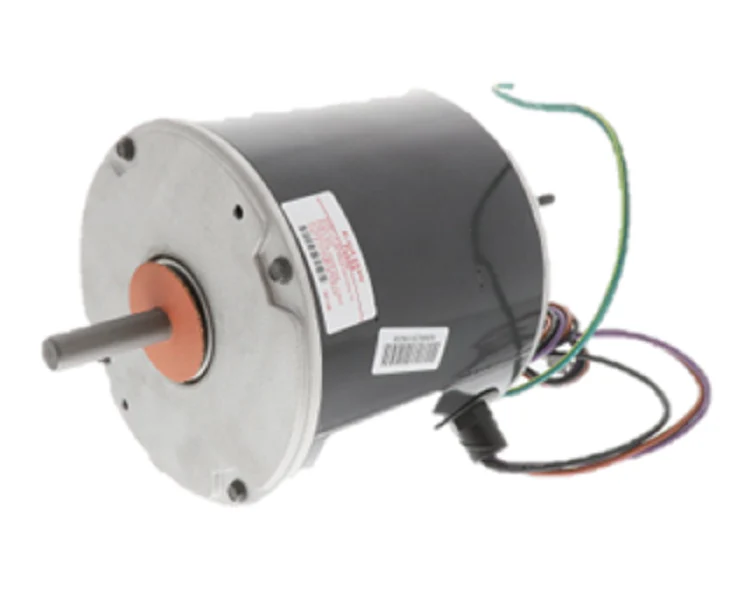

Trane MOT18685 Motor
The Trane MOT18685 Motor is a high-performance OEM condenser fan motor designed for direct integration into residential and light commercial Trane and American Standard outdoor units. Operating at 1/5 HP and 825 RPM, this 48 frame motor is engineered to meet the exact electrical and mechanical requirements of the original system, specifically serving as the direct replacement for X70370526010, as well as MOT13693 and MOT17917. This single-phase 200-230V unit draws approximately 1.8 amps and features a TEAO (Totally Enclosed Air Over) housing to protect internal components from moisture and debris in harsh outdoor environments.
As a veteran-grade HVAC replacement motor, the MOT18685 utilizes a 1/2-inch diameter by 2-inch shaft and maintains CCWLE (Counter-Clockwise Lead End) rotation. For field installation, technicians should verify the run capacitor requirements, which typically specify a 10 MFD 370V capacitor. Its Class F insulation and built-in thermal protection ensure stable head pressure and efficient heat rejection during high-load cooling cycles.
- OEM Compatibility: This is a Trane service motor that serves as a direct replacement for X70370526010, ensuring zero-modification fitment.
- TEAO Enclosure: The Totally Enclosed Air Over design prevents environmental contaminants from entering the windings, extending service life in condenser applications.
- Optimized Performance: Delivering 825 RPM at 1/5 HP ensures the correct static pressure and airflow across the outdoor coil.
- Standardized Frame: Features a standard 48Y NEMA frame with a 5-inch diameter body and 0.5-inch shaft for universal mounting in compatible housings.
Common Questions
What capacitor is required for the MOT18685?
While requirements vary by specific unit wiring, this motor typically utilizes a 10 MFD at 370V/440V run capacitor. Always check the original plate data before energizing.
Which motors does the MOT18685 replace?
It is the primary replacement for X70370526010 and is also compatible with legacy part numbers MOT07621, MOT13693, and MOT17917.
What is the rotation direction?
The Trane MOT18685 is a CCWLE (Counter-Clockwise Lead End) rotation motor, meaning it rotates counter-clockwise when viewed from the lead exit side.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
