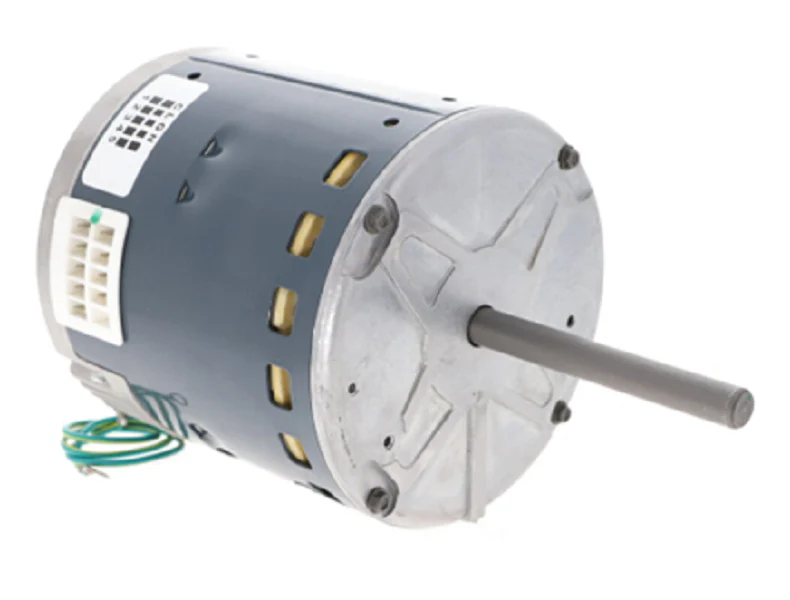

Trane MOT17043 Motor
The Trane MOT17043 is a high-efficiency ECM constant torque blower motor designed to provide precise airflow control in residential and commercial HVAC systems. Operating at 1/2 HP and supporting a voltage range of 208-230V at 60Hz, this X13 ECM motor is factory-programmed to handle specific system parameters, ensuring optimal static pressure performance and energy savings compared to standard PSC motors. With a NEMA 48 frame and a standard 1/2-inch shaft diameter, this motor integrates seamlessly into many American Standard and Trane air handlers and furnaces. For technicians, its CCW rotation (lead end) and 5-speed tap capability offer the flexibility needed to dial in exact CFM requirements. Built with a rugged ball bearing system and electronic overload protection, the MOT17043 replacement motor is engineered for a 1050 RPM nominal speed and reliable performance in demanding duty cycles.
Key Benefits- OEM Precision: Genuine Trane replacement part ensures the factory-programmed torque curves match your specific air handler model without the need for field programming.
- Efficient Performance: Features ECM technology that significantly reduces amp draw (rated at 4.1A load current) compared to legacy induction motors.
- Durability: Utilizing a sealed ball bearing design and a moisture-resistant enclosure type 48 for extended component life in high-static environments.
- Direct Integration: Standard belly band mounting and 5.6-inch diameter allow for a quick drop-in replacement during service calls.
Is the MOT17043 motor a direct replacement for PSC motors?
No, this is a programmed ECM motor. If you are replacing a PSC motor, you must ensure the system control board supports ECM signals or use the manufacturer-specified conversion kit.
Does this motor require field programming?
The Trane MOT17043 comes pre-programmed from the factory with the logic necessary for specific 1/2 HP applications. Technicians only need to connect the correct speed taps to match the original unit’s wiring schematic.
How do I troubleshoot if the motor is not turning?
First, verify 230V input at the high-voltage plug. Then, check for 24V signals at the speed taps. If the motor has power and a call but fails to rotate, the internal ECM controller or the motor windings may have failed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
