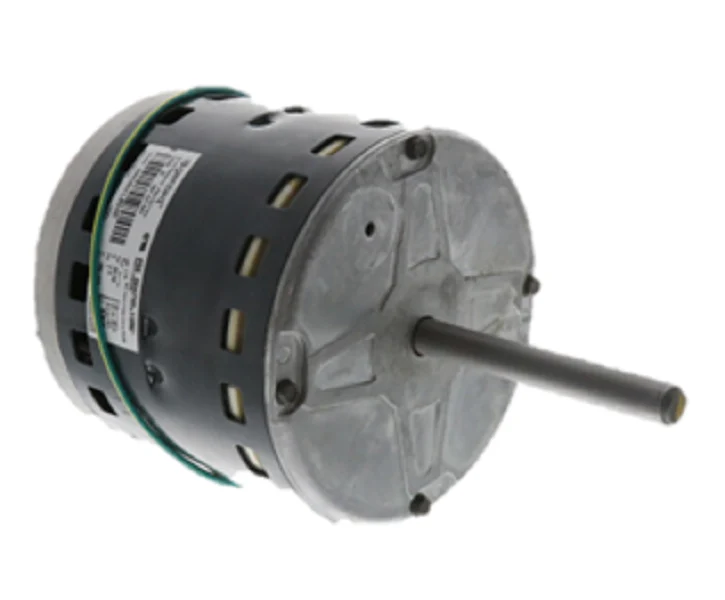

Trane MOT17018 Motor
The Trane MOT17018 Motor is a high-performance, 1/3 HP programmable motor designed for critical air handling and heating applications. Operating on 208-230V single-phase power, this constant torque motor (often referred to as an X13 or ECM replacement) provides precise airflow control by maintaining programmed torque levels regardless of external static pressure changes. For technicians, this means more consistent performance across varying ductwork conditions compared to standard PSC alternatives. The TEFC (Totally Enclosed Fan Cooled) enclosure and 48-frame design ensure the internal components are protected from dust and moisture, making the MOT17018 Trane replacement motor a reliable choice for HVAC blower motor swaps in residential and commercial air handlers.
Engineered for 60Hz systems, this Trane OEM motor features integrated electronic overload protection to prevent localized overheating and electrical failure under high-load scenarios. Professionals should verify the 1200 RPM rating and 5-speed capability to ensure exact matching with existing system control boards. Its compact architecture allows for straightforward mounting using a standard belly band, simplifying the replacement process in tight vertical or horizontal cabinet configurations.
- Precise Constant Torque: Delivers stable airflow across various static pressures, improving system efficiency.
- Durable TEFC Construction: Encapsulated design protects the 1/3 HP HVAC motor from environmental contaminants.
- Programmable Flexibility: Specifically tuned for Trane and American Standard air handlers to provide 1-to-1 performance matching.
- Integrated Protection: Built-in electronic overload technology safeguards the motor from excessive thermal stress.
Common Questions
Is the Trane MOT17018 a direct drop-in for standard PSC motors?
No, the MOT17018 is a specialized programmable blower motor. It requires the correct voltage and control signals from a compatible board. Always verify the 208-230V 1ph power requirements and connector pinouts before installation.
Can I use a generic ECM to replace the MOT17018?
While some universal motors exist, this Trane OEM part is pre-programmed with specific torque curves for the air handler’s blower wheel. Installing a non-programmed motor often results in insufficient airflow or excessive noise.
What does the TEFC rating mean for this motor?
A Totally Enclosed Fan Cooled (TEFC) rating means the motor's windings are not exposed to the air stream, utilizing an external fan to pull air over the frame for cooling, which significantly extends the motor's lifespan in harsh environments.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
