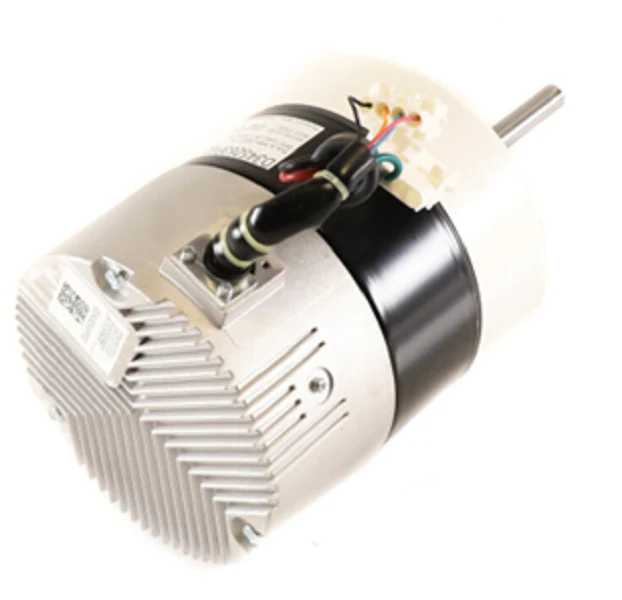

Trane MOT16957 Motor
The Trane MOT16957 Motor is a high-performance 3/4 HP ECM motor engineered for precise airflow control in variable speed HVAC systems. Operating across a broad 200-1500 RPM range, this direct drive blower motor utilizes a 230V single-phase power supply to maintain system static pressure and optimize heat exchange efficiency. Designed as an OEM replacement motor for specific Trane and American Standard air handlers and furnaces, it features a NEMA 48 frame and a 5.6-inch diameter housing. The integrated electronic control module ensures soft-start capabilities, reducing mechanical stress on the blower wheel and minimizing audible noise during ramp-up. For contractors performing field service, this variable speed fan motor is essential for restoring factory-spec airflow performance and moisture removal during cooling cycles. Verify the 16-pin or 4-pin harness compatibility with the existing control board to ensure seamless communication between the HVAC blower motor and the system logic.
Technical Specifications and Benefits- HP: 3/4 HP high-torque output for residential and light commercial applications.
- RPM Range: 200-1500 RPM variable speed functionality for precise CFM modulation.
- Efficiency: Electronically Commutated Motor (ECM) technology reduces amperage draw compared to standard PSC motors.
- Durability: Permanently lubricated ball bearings designed for continuous operation in high-static environments.
- Compatibility: Direct Trane OEM replacement for MOT16957, MOT12384, and MOT13101 models.
Is the control module included with the MOT16957?
Yes, this assembly consists of both the motor dictates and the programmed electronic module, ensuring the torque curves match the original equipment specifications.
Can this motor replace a standard PSC motor?
No, this is a dedicated ECM fan motor. It requires a specific PWM or serial signal from a compatible variable speed control board and cannot be wired directly to standard multispeed taps.
What causes premature failure in these ECM modules?
Most failures are attributed to voltage surges or high static pressure caused by restrictive ductwork or dirty filters, which forces the motor to ramp up to its maximum RPM limit frequently.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $768.68
-65%$768.68
$269.04Trane MOT16957 Motor
