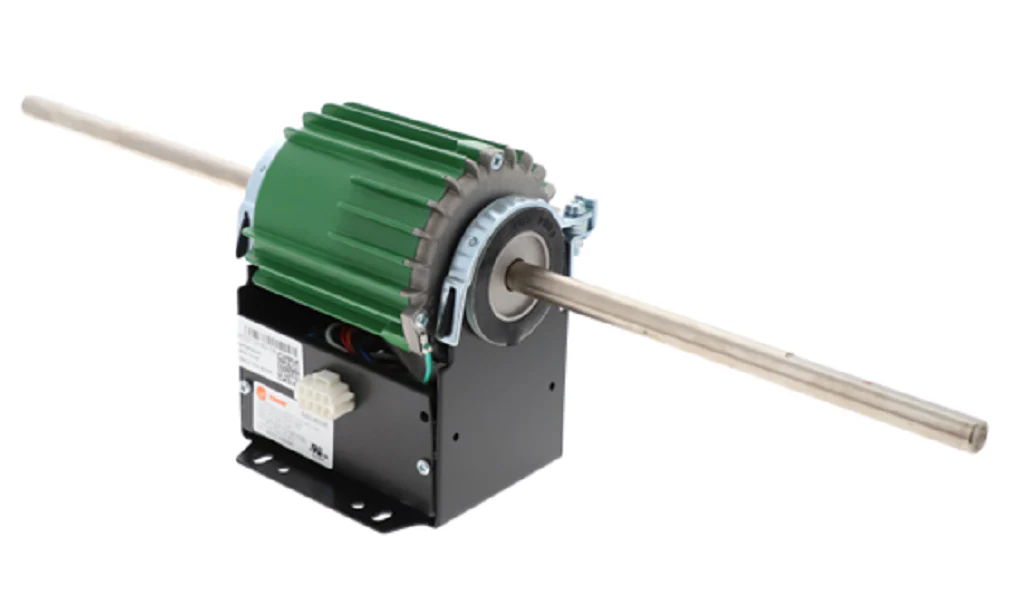

Trane MOT16734 Motor
The Trane MOT16734 Motor is a high-efficiency OEM replacement ECM motor designed for critical airflow applications in residential and light commercial HVAC systems. This 1/4 HP ECM motor utilizes advanced permanent magnet technology and an integrated electronic control module to deliver up to 70% better energy efficiency than traditional PSC motors. Engineered for versatility, it supports 115/208-230V single-phase power configurations and is housed in a TENV (Totally Enclosed, Non-Ventilated) enclosure to protect internal components from environmental debris. The Trane MOT16734 provides variable speed control, allowing for precise transitions and constant torque to maintain CFM even as static pressure fluctuates. It is a direct fit for compatible air handlers, fan coils, and evaporator units, ensuring rapid HVAC motor replacement for contractors. With its 50/60 Hz compatibility and robust brushless design, this motor reduces operational noise and enhances system longevity by minimizing thermal stress during startup.
Key Benefits- Reduced Energy Consumption: Electronically Commutated Motor (ECM) technology provides significant electrical savings compared to standard induction motors.
- Dual-Voltage Versatility: Field-selectable for 115V or 208-230V applications, reducing the need to carry multiple motor SKUs on the truck.
- Precise Airflow Management: Maintains consistent torque and airflow, helping to overcome ductwork restrictions and improve overall indoor air quality.
- Quiet Operation: Soft-start capabilities and variable speed ramp-up eliminate the "thump" associated with traditional motor cycles.
- Durable TENV Construction: The totally enclosed design prevents dust and moisture infiltration, essential for reliable performance in evaporator and condensing environments.
Is the MOT16734 a direct drop-in for PSC motors?
While the 1/4 HP rating and mounting may align, this is an ECM motor requiring specific control signals. It is intended as a direct OEM replacement for existing ECM-driven Trane systems to ensure proper communication with the integrated control board.
Does this motor require a capacitor?
No, as an ECM, the Trane MOT16734 uses internal electronic rectification and does not utilize a traditional external run capacitor.
How do I configure the voltage for 115V vs. 230V?
Standard industry practice for these dual-voltage ECMs involves the use of a voltage jumper on the 5-pin power connector; ensure the jumper is properly positioned for 115V or removed for 230V as per the equipment's internal wiring diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
