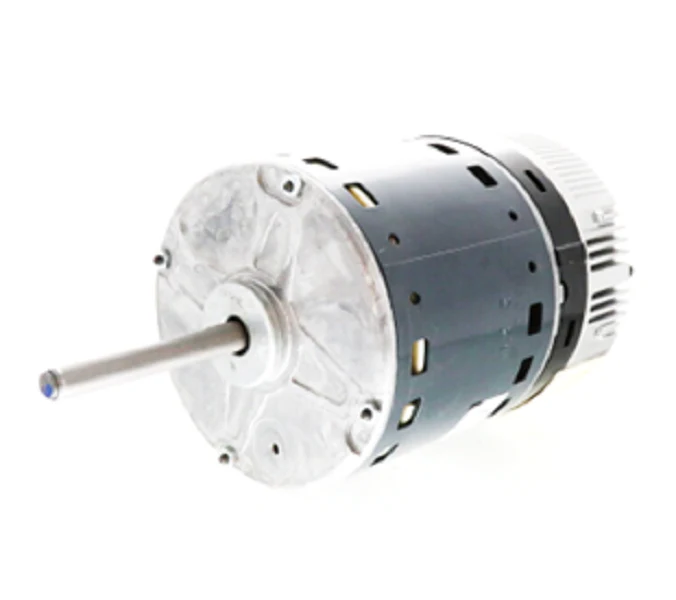

Trane MOT15164 Motor
The Trane MOT15164 is a 3/4 HP ECM blower motor designed for high-efficiency performance in residential and commercial HVAC systems. Operating on a versatile 115/230V dual voltage configuration, this constant torque motor is a direct OEM replacement for specific Trane and American Standard air handlers and furnaces. As an electronically commutated motor, it optimizes airflow by maintaining consistent torque across varying static pressures, which is critical for preventing coil freeze-ups and ensuring proper refrigerant cycle balance. For technicians, the programmed ECM motor design ensures a drop-in installation without necessitating complex field programming. This Trane OEM replacement motor utilizes a standard 48-frame housing and is built to withstand the thermal demands of continuous operation. When diagnosing a failed blower motor, the MOT15164 provides the precise RPM and torque profile required to maintain the system's AHRI-rated efficiency and static pressure specifications.
Key Benefits- Dual Voltage Capability: Supports both 115V and 230V applications, reducing truck stock requirements for 3/4 HP blower motors.
- Energy Efficiency: The ECM technology significantly reduces power consumption compared to standard PSC motors, especially during low-speed operation.
- OEM Compatibility: Ensures exact mechanical fit and electrical synchronization with existing Trane HVAC controls.
- Consistent Airflow: Maintains designed CFM even as filter loading increases, protecting the compressor and heat exchanger.
Is this motor compatible with 208V systems?
Yes, the Trane MOT15164 is rated for 208-230V applications as well as 115V, making it suitable for a wide range of electrical footprints.
Does this ECM motor require an external capacitor?
No, ECM blower motors feature integrated power modules and do not require a separate run capacitor, simplifying the wiring process.
Can I use this to replace a 1/2 HP motor?
It is recommended to always match the OEM horsepower rating. Upsizing to a 3/4 HP motor when the system was designed for 1/2 HP can lead to improper airflow velocities and increased static pressure issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
