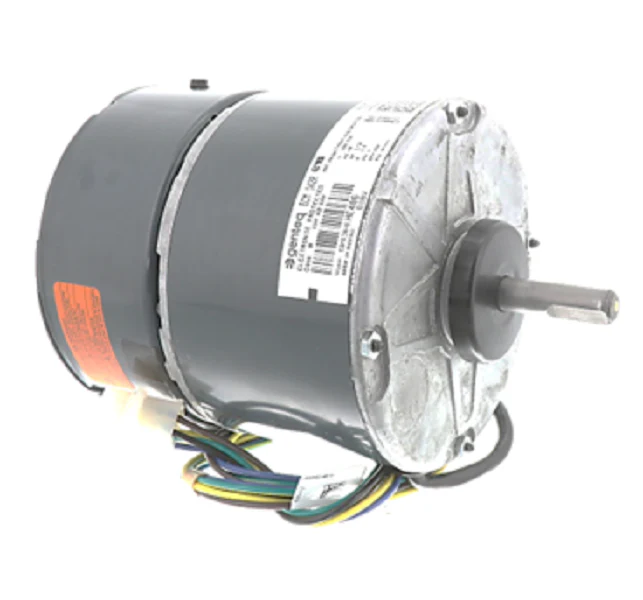

Trane MOT14649 Motor
The Trane MOT14649 is a high-performance direct drive condenser fan motor designed for specific Trane and American Standard outdoor condensing units. Operating at 1/3 HP with a dual-speed capability of 580/850 RPM, this motor is engineered for 200-230V single-phase applications. As a TEO (Totally Enclosed Overhang) motor, it provides essential protection against environmental debris and moisture, ensuring reliable heat dissipation during peak load cycles. This motor typically utilizes a 48-frame diameter and requires an external run capacitor (refer to nameplate for MFD rating) to maintain optimal torque and efficiency. When replacing an OEM Trane fan motor, ensure the lead lengths and mounting bolt patterns align with the existing fan shroud to maintain proper airflow across the coils.
- Dual-Speed Versatility: Supports both 580 and 850 RPM configurations to match original system requirements.
- OEM Compatibility: Precision-engineered for seamless integration into Trane and American Standard HVAC systems.
- Rugged Construction: Built to withstand commercial and residential outdoor conditions with high-grade insulation.
- Optimal Performance: Designed to maintain strict static pressure requirements for efficient refrigerant cooling.
Common Questions
What is the frame size for the MOT14649?
This motor follows the standard NEMA 48 frame specifications, common in residential and light commercial condenser units.
Does this motor include the run capacitor?
Capacitors are generally sold separately. It is critical to match the microfarad (uF) and voltage rating specified on the MOT14649 data plate for safe operation.
Can I use this to replace a single-speed motor?
This motor is specifically designed for systems requiring 580/850 RPM speeds. Verify your control board or contactor supports dual-speed lead connections before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
