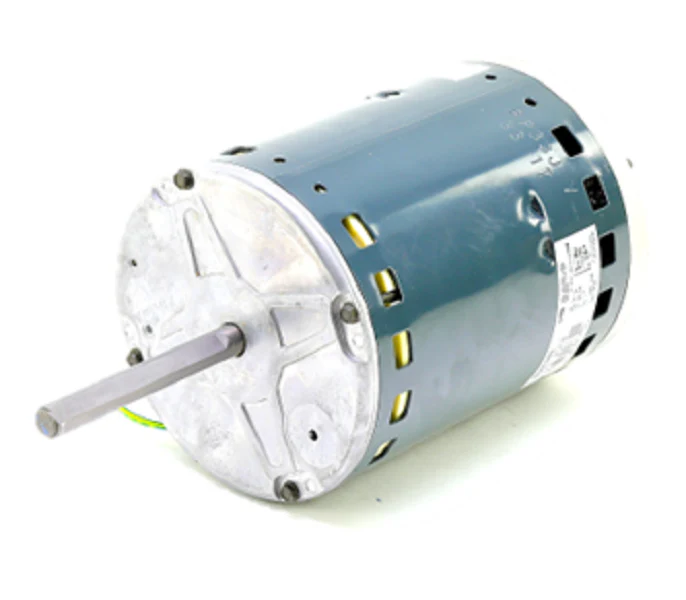

Trane MOT14008 Motor
The Trane MOT14008 Motor is a high-performance, 1 HP constant torque blower motor designed for precision airflow management in Trane and American Standard residential and light commercial air handlers. This ECM X13 replacement motor operates on a 208/230V single-phase circuit at a nominal 1050 RPM. Built with a NEMA 48 frame, it features a 5-speed tap configuration, allowing technicians to fine-tune the CFM output to meet specific static pressure requirements. The brushless DC motor technology ensures high energy efficiency compared to standard PSC motors, while the CCW rotation and belly band mounting design ensure a straightforward HVAC blower motor replacement process. The vented, continuous air-over (CAO) enclosure facilitates optimal heat dissipation for long-term HVAC system performance.
- Constant Torque Technology: Maintains consistent air circulation and torque across a range of static pressures for stable HVAC efficiency.
- Multi-Speed Versatility: Features 5 programmed speed taps for flexible air handler unit (AHU) applications and environmental control.
- OEM Compatibility: Specifically engineered as a direct replacement for Trane part number D672366G73 and original X13 blower motors.
- Durable Construction: NEMA 48 frame with an electronic overload protector for robust operation in demanding heating and cooling cycles.
Common Questions
Does this motor require field programming before installation?
No, this unit is pre-programmed to meet OEM specifications for targeted Trane air handlers, eliminating the need for external programming modules in the field.
Can I use this to replace a PSC motor in an older furnace?
While physically possible in some 48-frame mounts, you must ensure the single-phase power supply and control board are compatible with the 24VAC speed taps required by ECM motors.
What is the shaft size for the blower wheel connection?
The motor is equipped with a standard 0.5-inch diameter shaft, compatible with most Trane blower wheels used in high-efficiency systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
