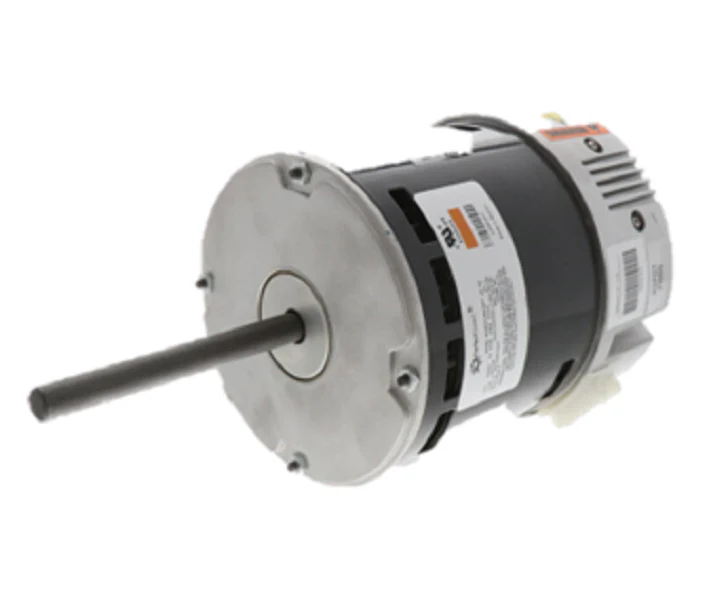

Trane MOT13934 Motor
The Trane MOT13934 is a 3/4 HP ECM variable speed motor engineered for high-efficiency HVAC operations, specifically within Trane and American Standard air handlers and furnaces. Operating at 1205/VAR RPM, this direct drive blower motor utilizes an integrated electronic control module to modulate airflow based on system demand, ensuring consistent static pressure management and improved dehumidification. As a genuine OEM Trane motor, it replaces problematic constant torque motors or failed ECM units to restore factory-specified performance in variable speed air handlers. Technicians should verify the 1/2-inch shaft diameter and frame specifications to ensure a seamless drop-in fit. This HVAC blower motor replacement is critical for maintaining the SEER ratings of multi-stage systems, providing the precise torque needed to overcome ductwork resistance without the energy spikes associated with standard PSC motors.
- Optimized Airflow Modulation: Features ECM technology for precise variable speed control, reducing electrical consumption and improving indoor air quality.
- OEM Reliability: Direct Trane MOT13934 replacement ensures full compatibility with the furnace control board communication protocols.
- Quiet Operation: Designed to eliminate the abrupt starts and stops of conventional motors, providing a soft-start ramp-up that reduces mechanical stress and noise.
- Technical Precision: Rated at 3/4 HP and 1205 RPM, providing the specific lift required for high-tonnage residential split systems.
Common Questions:
Can I replace a PSC motor with this ECM motor?
No, the Trane MOT13934 requires a specific wiring harness and a variable speed control board compatible with ECM signals. It cannot be used as a universal replacement for standard induction motors.
How do I troubleshoot a MOT13934 failure?
Before replacing, check for 120V/240V at the 5-pin power connector and verify the low-voltage communication signals from the HVAC controller. Most failures occur in the control module rather than the motor windings.
Is the control module included with this motor?
Yes, this 3/4 HP blower motor comes with the programmed ECM module attached, calibrated for the specific torque curves required by Trane equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,691.05
-65%$1,691.05
$591.87Trane MOT13934 Motor
The Trane MOT13934 is a 3/4 HP ECM variable speed motor engineered for high-efficiency HVAC operations, specifically within Trane and American Standard air handlers and furnaces. Operating at 1205/VAR RPM, this direct drive blower motor utilizes an integrated electronic control module to modulate airflow based on system demand, ensuring consistent static pressure management and improved dehumidification. As a genuine OEM Trane motor, it replaces problematic constant torque motors or failed ECM units to restore factory-specified performance in variable speed air handlers. Technicians should verify the 1/2-inch shaft diameter and frame specifications to ensure a seamless drop-in fit. This HVAC blower motor replacement is critical for maintaining the SEER ratings of multi-stage systems, providing the precise torque needed to overcome ductwork resistance without the energy spikes associated with standard PSC motors.
- Optimized Airflow Modulation: Features ECM technology for precise variable speed control, reducing electrical consumption and improving indoor air quality.
- OEM Reliability: Direct Trane MOT13934 replacement ensures full compatibility with the furnace control board communication protocols.
- Quiet Operation: Designed to eliminate the abrupt starts and stops of conventional motors, providing a soft-start ramp-up that reduces mechanical stress and noise.
- Technical Precision: Rated at 3/4 HP and 1205 RPM, providing the specific lift required for high-tonnage residential split systems.
Common Questions:
Can I replace a PSC motor with this ECM motor?
No, the Trane MOT13934 requires a specific wiring harness and a variable speed control board compatible with ECM signals. It cannot be used as a universal replacement for standard induction motors.
How do I troubleshoot a MOT13934 failure?
Before replacing, check for 120V/240V at the 5-pin power connector and verify the low-voltage communication signals from the HVAC controller. Most failures occur in the control module rather than the motor windings.
Is the control module included with this motor?
Yes, this 3/4 HP blower motor comes with the programmed ECM module attached, calibrated for the specific torque curves required by Trane equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
