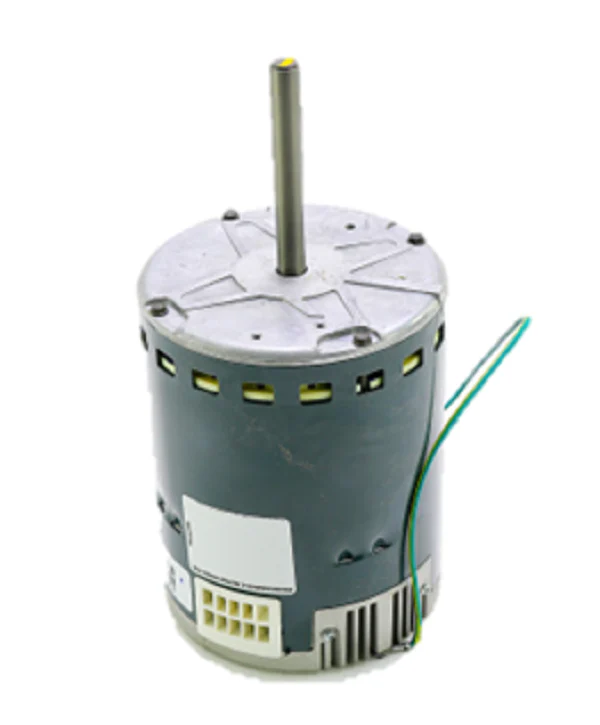

Trane MOT13134 Motor
The Trane MOT13134 is a heavy-duty 1 HP condenser fan motor engineered for demanding HVACR applications requiring high torque and reliable thermal management. Operating at 230V with a dual-speed capability of 1050/600 RPM, this motor provides the precise airflow control needed for consistent head pressure regulation. This OEM Trane replacement motor features a CCW (Counter Clockwise) rotation and is built with a 48-frame diameter, making it a drop-in solution for specific Trane and American Standard condensing units. For technicians performing field service, it is critical to verify the capacitor requirements and shaft dimensions to ensure a seamless fit. This permanent split capacitor (PSC) motor is designed with high-grade internal windings to withstand the high ambient temperatures found in outdoor environments, ensuring long-term performance without premature failure during peak load conditions.
- Dual-Speed Logic: Provides 1050/600 RPM flexibility for optimized system efficiency.
- OEM Compatibility: Exact electrical match for Trane and American Standard 1 HP motor replacements.
- Industrial Build Quality: Class B insulation and sealed bearings for extended operational life in harsh climates.
- Optimized Performance: Engineered for high-static pressure environments in residential and light commercial condensers.
Common Questions
What is the frame size and shaft diameter for the MOT13134?
This unit typically utilizes a standard NEMA 48-frame housing. Technicians should measure the existing shaft to ensure it matches the 1/2-inch industry standard often used in these 1 HP configurations.
Does this motor require a specific capacitor?
Yes, as a PSC motor, the Trane MOT13134 requires a run capacitor. Check the motor nameplate for the specific MFD/uF rating to ensure proper phase displacement and torque.
Can I use this motor to replace a single-speed 1050 RPM motor?
While the 1050 RPM high-speed matches, you must ensure the control board or contactor in the unit supports the secondary 600 RPM lead if you intend to utilize the dual-speed functionality.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
