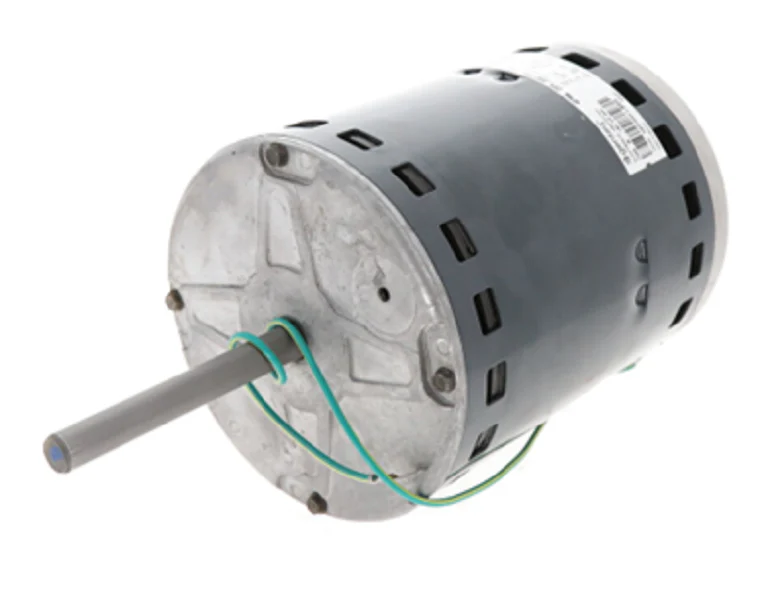

Trane MOT13120 Motor
The Trane MOT13120 is a high-efficiency 1 HP Constant Torque blower motor designed for precise airflow management in residential and light commercial HVAC systems. Operating at 208-230V, this ECM motor (Electronically Commutated Motor) serves as a direct OEM replacement motor for specific Trane and American Standard air handlers and furnaces. Unlike standard PSC motors, the MOT13120 maintains consistent CFM across varying static pressures, ensuring optimal Heat Exchanger performance and refrigerant cycle stability. It features a 5-pin power and 16-pin signal harness configuration, typical of X13 motor technology. This brushless DC motor is engineered for high-duty cycles, providing the torque necessary to overcome restrictive ductwork or high-MERV filtration systems. When replacing this unit, verify the programmed motor parameters and shaft diameter to ensure mechanical compatibility with the existing blower wheel assembly.
- Constant Torque Performance: Maintains consistent airflow to prevent evaporator coil freeze-ups and maintain system efficiency.
- OEM Compatibility: Precision-engineered for Trane replacement parts, ensuring correct mounting and electrical lead lengths.
- Reduced Power Consumption: The ECM 1 HP motor design significantly lowers amperage draw compared to traditional induction motors.
- Robust Construction: Built with high-grade bearings and thermal protection to handle the high-static environments of modern high-efficiency split systems.
Common Questions
Is the MOT13120 a drop-in replacement for a PSC motor?
No, this is an ECM constant torque motor. It requires a specific wiring harness and control signal from the integrated furnace control board. Converting from a PSC to an ECM requires a different control architecture.
Does this motor come pre-programmed?
Yes, the Trane MOT13120 is programmed with specific torque curves tailored for compatible Trane/American Standard equipment. Always verify the part number against the equipment's bill of materials.
What causes premature failure in these 1 HP blower motors?
High Total External Static Pressure (TESP) due to undersized ductwork or dirty filters is the primary cause of ECM motor module failure. Check static pressure during installation to ensure longevity.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
