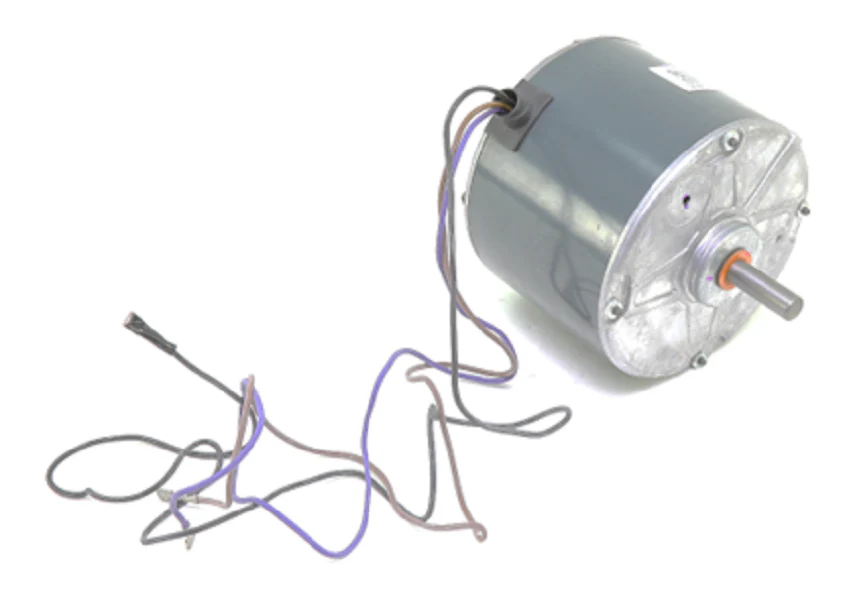

Trane MOT13001 Motor
The Trane MOT13001 Motor is a high-performance OEM condenser fan motor engineered for precision and reliability in demanding HVACR applications. Operating at 825 RPM with a 1/8 HP output, this Permanent Split Capacitor (PSC) motor is designed for 200/230V single-phase electrical systems. Built on a standard 48 Frame chassis, it ensures seamless integration and physical compatibility with a wide range of Trane and American Standard outdoor units. The motor features a Totally Enclosed Air-Over (TEAO) enclosure, protecting internal windings from environmental debris while utilizing the system’s airflow for thermal management. With its Sleeve Bearing design and Counter-Clockwise (CCW) rotation from the lead end, this unit provides the consistent torque necessary for optimal heat exchange and system head pressure control.
Key Benefits- OEM Direct Replacement: Guaranteed fit for Trane and American Standard systems, reducing field modification time.
- Industrial Durability: Robust construction designed to withstand the high ambient temperatures found in residential and commercial condensing units.
- Precision Performance: The 825 RPM speed is calibrated for specific fan blade pitches to maintain design airflow without excessive amp draw.
- Simplified Mounting: Standard 48FR dimensions allow for versatile band or through-bolt mounting configurations.
What capacitor is required for the MOT13001?
This motor typically requires a 5 MFD / 370V run capacitor. Always verify the rating on the motor nameplate during installation to ensure proper phase displacement and winding protection.
Can I use this to replace a motor with a different RPM?
It is critical to match the 825 RPM specification. Using a motor with a different speed can lead to improper refrigerant cooling or motor overheating due to incorrect static pressure.
How do I confirm the rotation direction?
The MOT13001 is rated for CCW rotation from the lead end. Verify your existing fan blade pitch to ensure air is pulled through the coil and exhausted properly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
