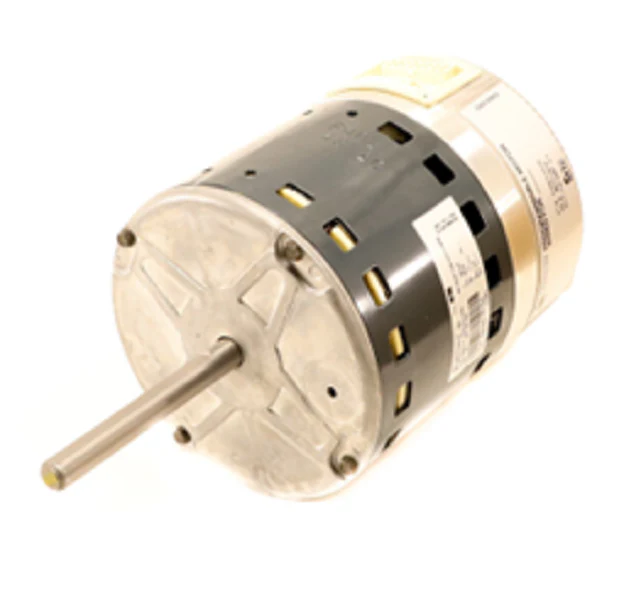

Trane MOT12619 Motor Only
The Trane MOT12619 Motor Only is a high-efficiency 1/2 HP ECM blower motor engineered for precision airflow in light commercial and industrial HVAC applications. This dual-voltage 115/230V motor utilizes advanced electronically commutated motor technology to deliver up to 50% better energy efficiency than traditional induction motors. Built within a standard 48 frame, this unit operates at a nominal 1050 RPM and provides reliable clockwise (CW) rotation for consistent air distribution through VAV systems and rooftop handlers.
For technicians in the field, the MOT12619 is a critical replacement part for maintaining system static pressure and optimizing variable speed performance. This OEM motor only configuration allows for a direct-fit swap when the existing high-efficiency motor has failed, ensuring the control logic of the original system is preserved. Its robust construction features extended bearing life and a 16-pin control connection for seamless integration with existing HVAC control boards.
Key Benefits- Variable Speed Efficiency: The ECM design adapts to system demands, significantly reducing electrical consumption compared to PSC alternatives.
- Precise Airflow Control: Engineered for high-demand environments, maintaining stable environmental comfort through variable speed modulation.
- Compact NEMA 48 Frame: Standard mechanical dimensions ensure a clean installation into existing blower housings and shell-band mounts.
- Dual-Voltage Versatility: Field-selectable 115/230V operation allows for broad compatibility across various commercial equipment configurations.
Is this a drop-in replacement for motors with different pin counts?
This Trane MOT12619 is designed for systems utilizing the 16-pin control harness standard for ECM 2.3 series motors. Always verify your existing pin configuration and control module before installation.
Does this motor include the control module (ECM 2.3)?
This SKU is the motor only. Ensure your existing electronics are functioning or source a compatible module if the failure was determined to be in the motor’s control circuitry.
How do I confirm if the motor or the board is faulty?
Check for 24VAC at the 'G' terminal and standard line voltage at the high-voltage harness. If voltages are present and the blower wheel spins freely without restricted airflow, the ECM internal windings or the control module are likely comprised.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $845.47
-65%$845.47
$295.91Trane MOT12619 Motor Only
The Trane MOT12619 Motor Only is a high-efficiency 1/2 HP ECM blower motor engineered for precision airflow in light commercial and industrial HVAC applications. This dual-voltage 115/230V motor utilizes advanced electronically commutated motor technology to deliver up to 50% better energy efficiency than traditional induction motors. Built within a standard 48 frame, this unit operates at a nominal 1050 RPM and provides reliable clockwise (CW) rotation for consistent air distribution through VAV systems and rooftop handlers.
For technicians in the field, the MOT12619 is a critical replacement part for maintaining system static pressure and optimizing variable speed performance. This OEM motor only configuration allows for a direct-fit swap when the existing high-efficiency motor has failed, ensuring the control logic of the original system is preserved. Its robust construction features extended bearing life and a 16-pin control connection for seamless integration with existing HVAC control boards.
Key Benefits- Variable Speed Efficiency: The ECM design adapts to system demands, significantly reducing electrical consumption compared to PSC alternatives.
- Precise Airflow Control: Engineered for high-demand environments, maintaining stable environmental comfort through variable speed modulation.
- Compact NEMA 48 Frame: Standard mechanical dimensions ensure a clean installation into existing blower housings and shell-band mounts.
- Dual-Voltage Versatility: Field-selectable 115/230V operation allows for broad compatibility across various commercial equipment configurations.
Is this a drop-in replacement for motors with different pin counts?
This Trane MOT12619 is designed for systems utilizing the 16-pin control harness standard for ECM 2.3 series motors. Always verify your existing pin configuration and control module before installation.
Does this motor include the control module (ECM 2.3)?
This SKU is the motor only. Ensure your existing electronics are functioning or source a compatible module if the failure was determined to be in the motor’s control circuitry.
How do I confirm if the motor or the board is faulty?
Check for 24VAC at the 'G' terminal and standard line voltage at the high-voltage harness. If voltages are present and the blower wheel spins freely without restricted airflow, the ECM internal windings or the control module are likely comprised.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
