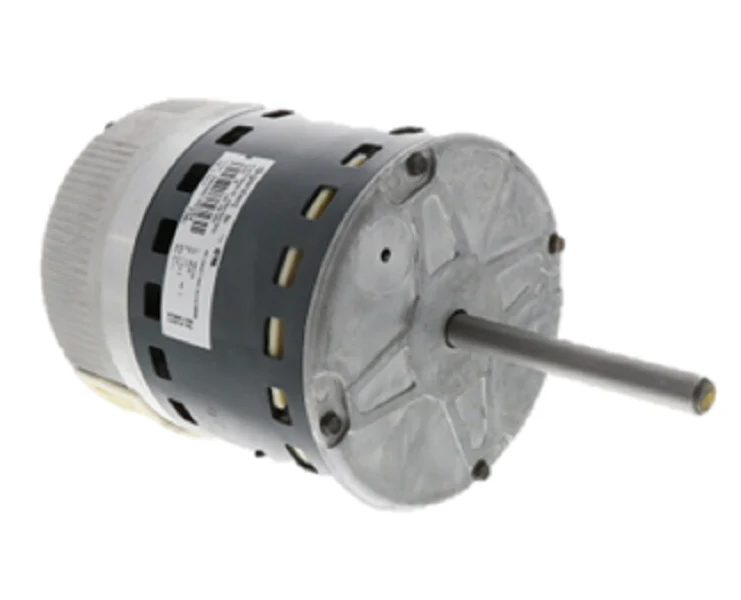

Trane MOT12614 Motor
For service technicians managing high-efficiency system repairs, the Trane MOT12614 serves as a direct OEM 1/2 HP ECM blower motor replacement designed specifically for 115/230V air handlers and furnaces. This variable speed fan motor operates at 1050 RPM with a counter-clockwise (CCW) rotation, utilizing a NEMA 48 frame for standard mounting compatibility. Unlike static induction motors, this unit features a brushless DC motor architecture that modulates torque and airflow based on system demand, significantly improving efficiency in Trane residential air handlers like the 2TEE3F series. The MOT12614 dual voltage motor is engineered for a 16-pin connection, ensuring precise communication between the integrated control module and the central furnace control board. By maintaining consistent static pressure through its advanced ECM motor technology, this part eliminates common performance fluctuations in multi-stage heating and cooling equipment.
- OEM Compatibility: Exact replacement for Trane MOT12614 part numbers, ensuring zero-configuration installation in supported air handlers.
- Variable Speed Efficiency: Maximizes SEER ratings by automatically adjusting HVAC blower motor output to match real-time cooling or heating loads.
- Dual Voltage Versatility: Field-selectable 115V or 230V operation simplifies truck stock for contractors servicing diverse residential systems.
- Robust Build: Heavy-duty internal ball bearings and moisture-resistant windings designed for continuous duty cycles in high-static environments.
Common Questions
How do I verify if this 16-pin motor is compatible with my current control module?
The Trane MOT12614 is a complete motor and module combo. If your existing unit uses a 16-pin harness and matches the 1/2 HP rating, this unit provides the necessary communication protocols for variable speed operation. Always check the harness for pin corrosion before connecting.
Can this motor replace an older silver-end-cap 3.0 ECM motor?
No, this unit is designed for 2.0 and 2.3 series ECM configurations. Replacing a 3.0 series motor require distinct module programming and wiring configurations. Verify your current motor series before installation.
What rotation direction does the MOT12614 support for furnace blowers?
This motor is factory-set for CCW rotation at 1050 RPM, which is the standard orientation for the target Trane and American Standard blower assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
