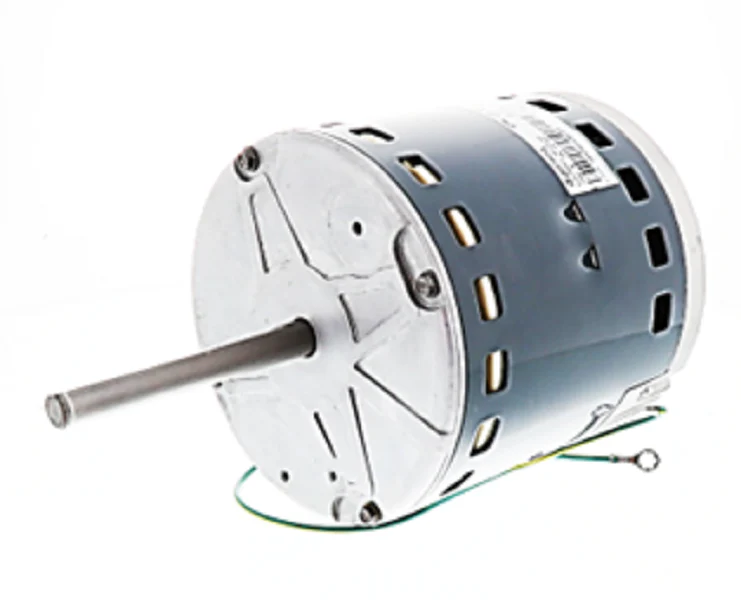

Trane MOT12292 Motor
The Trane MOT12292 is a high-efficiency, 1/2 HP replacement motor designed for constant torque performance in residential and light commercial HVAC systems. This 208-230V blower motor operates at 1050 RPM and features 2-speed versatility, making it a critical component for maintaining precise airflow in 13-14 SEER air handlers and furnaces. As a programmed X13 ECM motor, it serves as a direct drop-in for several American Standard and Trane units, including the 4TEH and 2TEH series. Utilizing CCW rotation and a 48-frame vented enclosure, this motor ensures reliable heat dissipation and long-term duty cycles in demanding climate control applications. For technicians performing field service, this OEM Trane motor eliminates the need for complex wiring modifications, allowing for a standard plug-and-play installation into existing 24V control harnesses.
Key Benefits- Constant torque technology provides consistent airflow against varying static pressures for optimized system efficiency.
- Pre-programmed ECM module ensures immediate compatibility with Trane control boards without the need for field programming tools.
- Multi-speed flexibility allows for proper air distribution during both heating and cooling cycles.
- Vented enclosure design promotes cooler internal operating temperatures to extend the functional lifespan of the windings.
- High-torque performance reduces startup noise and provides smoother transitions between operational speeds.
Is the MOT12292 a direct replacement for MOT13004?
Yes, the Trane MOT12292 is the manufacturer-designated successor and replaces part numbers MOT13004, 5SME39HXL053A, and X70370580040.
Does this motor require a separate capacitor?
No, as an ECM motor with an integrated electronic control module, it does not utilize a traditional run capacitor.
What is the frame size and mounting orientation?
This is a 48-frame motor (approximately 5.6 inches in diameter) designed for horizontal mounting using standard belly band brackets.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
