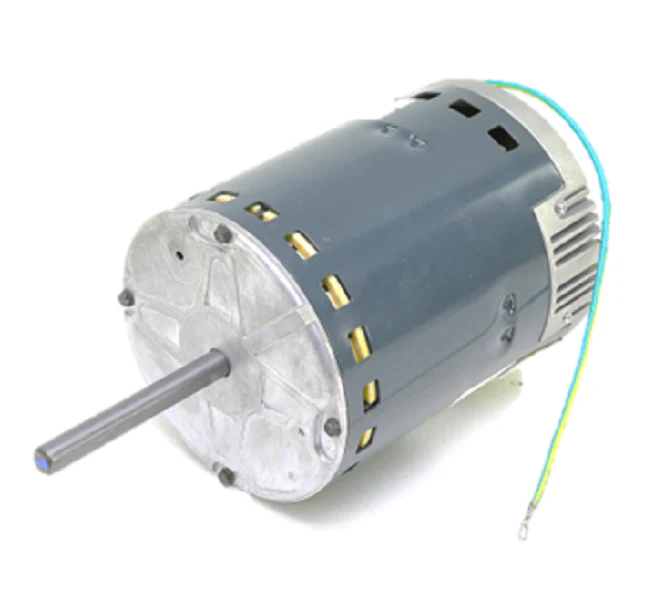

Trane MOT12289 Motor
The Trane MOT12289 is a heavy-duty, direct-drive condenser fan motor designed for critical applications in high-tonnage HVAC systems. This 1 HP motor operates on 208-230V single-phase power, featuring a 48-frame design and 1075 RPM performance standard for optimizing head pressure in commercial units. Built for demanding outdoor environments, it utilizes Class B insulation and an enclosed shaft-end bracket to prevent moisture ingress. The Clockwise (CW) rotation and permanent split capacitor (PSC) design ensure consistent torque across the duty cycle, making it a reliable OEM replacement motor for Trane and American Standard units. When verifying compatibility, ensure the shaft diameter and mounting pattern match the previous Trane fan motor assembly to maintain factory static pressure specifications. This industrial-grade HVAC replacement motor provides the high-starting torque required for large-diameter fan blades without sacrificing energy efficiency.
Key Benefits for Technicians:
- High-Torque Performance: 1.0 HP rating provides sufficient power for high-static condenser fan applications.
- Standardized Housing: The NEMA 48 frame diameter ensures fitment in standard mounting brackets and belly bands.
- Thermal Protection: Includes automatic reset thermal overloads to protect the windings during high-ambient operation.
- Energy Efficiency: Optimized PSC design reduces amperage draw compared to shaded-pole alternatives.
- OEM Reliability: Direct Trane MOT12289 replacement ensures electrical component matching without modifying wiring harnesses.
Common Questions:
What is the frame size and mounting for the MOT12289?
This is a standard 48-frame motor, typically mounted via the included thru-bolts or a belly band bracket, depending on the specific air handler or condenser cabinet design.
Can I use a different capacitor than the one specified?
For peak performance and to prevent winding overheating, always use the Run Capacitor microfarad (MFD) rating listed on the motor nameplate.
Is the rotation reversible on this Trane motor?
This specific model is factory-set for CW rotation. Always verify the lead-end or shaft-end rotation of the existing motor before installation to ensure proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
