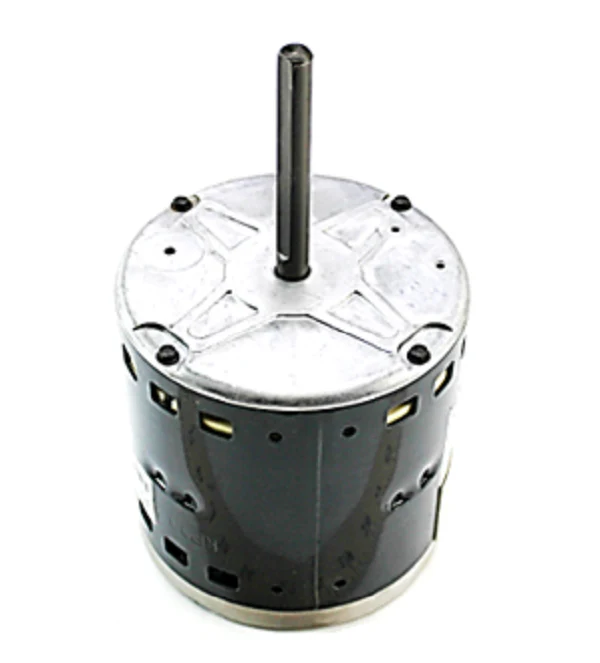

Trane MOT12244 Motor
For service technicians and mechanical contractors, the Trane MOT12244 is a critical OEM replacement motor engineered specifically for high-efficiency variable-speed systems. This 1/2 HP 115V programmed motor is a constant torque blower solution designed to drop directly into compatible Trane and American Standard air handlers and furnaces. Unlike standard induction motors, this unit features a factory-programmed ECM (Electronically Commutated Motor) module, ensuring the precise airflow profiles required for optimal HVAC system performance and seasonal efficiency. With its 48 frame construction and CCW rotation, this motor provides the reliability needed in demanding residential and light commercial environments.
Integrated with electronic overload protection, the Trane 1/2 HP programmed blower motor handles 115V/60Hz/1PH power with a load current of approximately 6.8A. As a variable speed HVAC motor, it communicates directly with the system control board to modulate speeds across 5 discrete taps, maintaining consistent torque even as static pressure fluctuates. When replacing a failed Trane variable speed motor, using this genuine MOT12244 programmed motor eliminates the need for field programming or complex wiring adjustments, ensuring the blower assembly returns to factory specifications immediately upon installation.
Key Benefits
- Direct OEM Compatibility: Pre-programmed specifically for Trane and American Standard furnace models, ensuring seamless integration with existing control modules.
- High-Efficiency Performance: Utilizes ECM technology to reduce energy consumption and improve SEER ratings compared to traditional PSC motors.
- Constant Torque Output: Maintains stable airflow across five speed taps, compensating for varying duct restrictions and filter loads.
- Simplified Installation: Features a standard 48 frame mounting and plug-and-play wiring harnesses for reduced downtime on the job site.
- Industrial-Grade Build: Engineered with a vented enclosure and robust aluminum/steel housing for superior heat dissipation and mechanical longevity.
Common Questions
Does this motor require field programming before installation?
No, the Trane MOT12244 is a factory-programmed unit. It is configured with the specific airflow parameters and torque curves required for your equipment, so no additional software or programming tools are needed at the site.
Can I use a standard 1/2 HP motor to replace this programmed ECM?
It is not recommended. This variable speed motor relies on a specific communication protocol and constant torque logic that standard PSC motors cannot replicate. Using a non-OEM motor can lead to control board errors and significant drops in system efficiency.
What should I check if the motor fails to start?
First, verify that the 115V power supply and low-voltage control signals are reaching the motor module. Often, failure in these systems is localized to the motor control module (the "end cap") rather than the mechanical motor itself. Ensure all wiring harnesses are secure and free of corrosion.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
