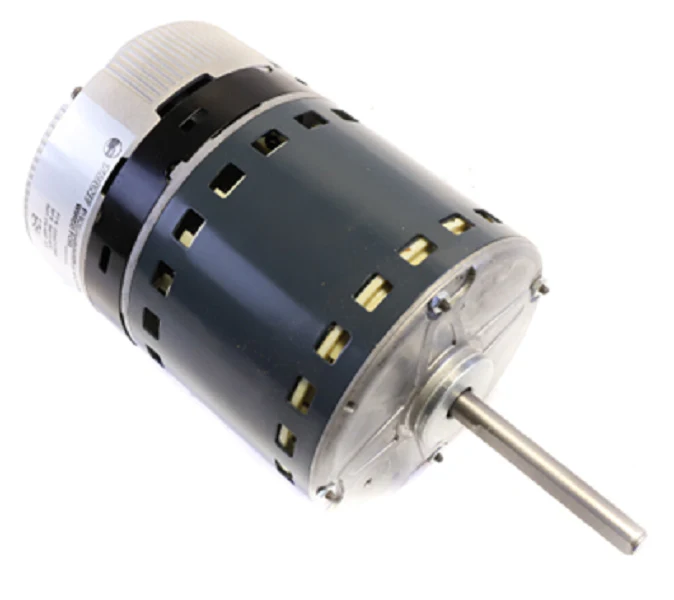

Trane MOT11976 Motor
The Trane MOT11976 Motor is a high-efficiency ECM constant torque blower motor designed for direct replacement in specific Trane and American Standard air handlers and gas furnaces. Operating within a 3/4-1HP range, this versatile component supports dual-voltage applications from 120V to 240V and maintains a nominal speed of 1200 RPM. As a brushless DC motor, the MOT11976 utilizes an integrated electronic control module to regulate airflow, ensuring consistent static pressure performance across varying ductwork configurations. Technicians often select this OEM Trane blower motor to resolve issues with hunting speeds or module failure in high-efficiency HVAC systems. Its robust NEMA frame design and moisture-resistant windings ensure long-term reliability in demanding thermal environments. When performing a furnace blower motor replacement, the MOT11976 provides the necessary torque to maintain CFM delivery requirements, optimizing total system static pressure and improving overall SEER ratings for residential climate control equipment.
Key Benefits for HVAC Technicians- Universal Voltage Compatibility: Supports 120V through 240V single-phase power inputs for broader application range.
- Variable Torque Sensing: Integrated control module adjusts output to maintain airflow as filter static pressure increases.
- OEM Reliability: Direct Trane MOT11976 replacement ensures exact mounting alignment and harness compatibility.
- Thermal Protection: Internal electronic safeguards prevent windings from overheating during high-load cycles.
- High Efficiency: ECM technology significantly reduces HVAC electrical consumption compared to standard PSC motors.
What are the wiring requirements for the MOT11976?
This motor utilizes a standard 5-pin power connector and a 16-pin signal harness. Always verify the Trane wiring diagram for your specific air handler model to ensure correct speed tap configuration.
Can this motor replace a standard PSC motor?
The MOT11976 is an ECM motor. It can only replace a PSC motor if the system is retrofitted with a compatible control board and harness; however, it is primarily intended for direct 1-to-1 replacement of existing ECM units.
How do I diagnose a module failure vs. a mechanical failure?
Use an ECM motor tester to simulate the signal from the furnace control board. If the motor spins freely by hand but fails to engage with a known good signal, the integrated electronic module has likely failed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
