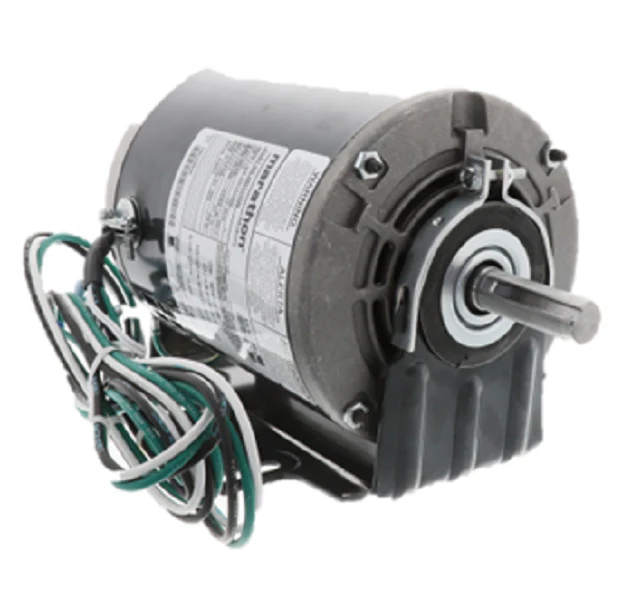

Trane MOT11580 Motor
The Trane MOT11580 is a high-performance direct drive blower motor engineered for demanding commercial HVAC applications requiring a 1/3 HP 4-pole motor configuration. Operating at 277V 60Hz, this single-phase induction motor maintains a constant 1725 RPM, providing the consistent static pressure necessary for efficient air handling. Built on a standard NEMA 56 frame, the MOT11580 features an open drip-proof (ODP) enclosure designed to facilitate optimal cooling airflow through the windings while protecting against vertical moisture ingress. This unit is commonly specified for Trane fan coil units and air handlers where precise torque and thermal stability are critical for long-term reliability. When performing a field replacement, ensure the run capacitor values match the original equipment manufacturer (OEM) specifications to maintain efficiency and prevent premature winding failure due to excessive heat. This OEM Trane replacement motor ensures drop-in compatibility, eliminating the need for mounting modifications during professional service calls.
- NEMA 56 Frame: Provides a standardized mounting footprint for seamless integration into existing rack and bracket assemblies.
- 1725 RPM Synchronous Speed: Delivers high-torque performance under load, critical for maintaining required CFM in commercial ductwork.
- ODP Enclosure: Maximizes heat dissipation across the copper windings, extending component life during continuous duty cycles.
- 277V Industrial Rating: Optimized for commercial power circuits, ensuring reliable start-up and consistent amperage draw.
Common Installation Questions
What is the frame size and shaft diameter for the MOT11580?
This motor utilizes a NEMA 56 frame. Technicians should verify the existing blower wheel bore matches the motor shaft diameter, typically 5/8 inch for this frame size, to ensure a secure mechanical connection.
Can I use this 277V motor on a 230V or 208V circuit?
No. The MOT11580 is specifically wound for 277V. Running this motor on a lower voltage will result in insufficient torque, overheating, and eventual failure of the internal insulation.
Is this a multi-speed or single-speed motor?
This is a single-speed, 1725 RPM motor. If your current application requires a multi-tap speed configuration, ensure your controller or wiring harness is compatible with a single-speed direct drive setup.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
