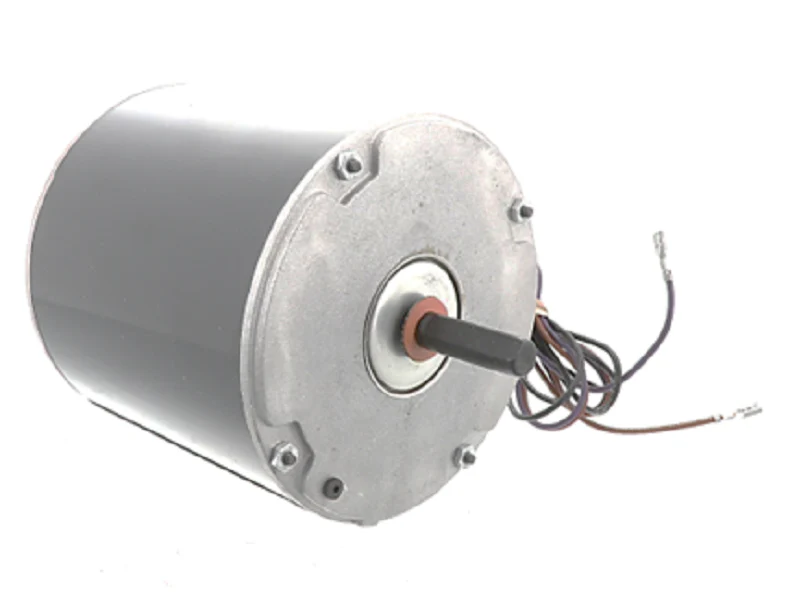

Trane MOT11526 Motor
The Trane MOT11526 is a professional-grade 1/4 HP condenser fan motor engineered for high-static applications in commercial and residential HVACR systems. Operating at 460V and a nominal 825 RPM, this 48-frame PSC motor is a direct drop-in replacement designed to maintain precise airflow across the outdoor coil, ensuring optimal heat transfer and system head pressures. Built with a totally enclosed air over (TEAO) enclosure, it offers superior protection against environmental contaminants and moisture, which is critical for extending the service life of centrifugal fan assemblies. This single-speed motor requires a run capacitor (verify MFD rating on nameplate) and features high-grade ball bearings to handle the axial and radial loads typical of vertical shaft-up or shaft-down installations. When performing a Trane motor replacement, the MOT11526 ensures electrical compatibility with existing wiring harnesses, minimizing field modification time and restoring OEM-level performance to the condenser unit.
Key Technical Benefits
- High-Voltage Efficiency: Optimized for 460V 3-phase or single-phase industrial power supplies, reducing amperage draw and heat generation.
- Low-Speed Stability: The 825 RPM configuration provides quieter operation and consistent static pressure for specific coil geometries.
- NEMA 48 Frame: Standardized mounting footprint ensures compatibility with various HVAC replacement parts and motor brackets.
- Thermal Protection: Internal automatic reset thermal overload protection prevents winding failure during restricted airflow conditions.
- Weatherproof Construction: TEAO design ensures the internal windings remain isolated from rain, dirt, and debris found in outdoor environments.
Common Installation Questions
What capacitor is required for the MOT11526?
Most 1/4 HP 825 RPM PSC motors utilize a 5 MFD or 7.5 MFD 440V run capacitor; always verify the specific rating printed on the motor nameplate during installation.
Can this motor replace a 1075 RPM motor?
No, replacing a 1075 RPM motor with an 825 RPM motor will significantly reduce airflow and can lead to high head pressure and compressor failure.
Is this motor reversible in the field?
The MOT11526 typically features standard CCWLE or reversible rotation; check the lead wire diagram to ensure proper blade pitch alignment before securing the fan blade.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $574.53
-65%$574.53
$201.09Trane MOT11526 Motor
The Trane MOT11526 is a professional-grade 1/4 HP condenser fan motor engineered for high-static applications in commercial and residential HVACR systems. Operating at 460V and a nominal 825 RPM, this 48-frame PSC motor is a direct drop-in replacement designed to maintain precise airflow across the outdoor coil, ensuring optimal heat transfer and system head pressures. Built with a totally enclosed air over (TEAO) enclosure, it offers superior protection against environmental contaminants and moisture, which is critical for extending the service life of centrifugal fan assemblies. This single-speed motor requires a run capacitor (verify MFD rating on nameplate) and features high-grade ball bearings to handle the axial and radial loads typical of vertical shaft-up or shaft-down installations. When performing a Trane motor replacement, the MOT11526 ensures electrical compatibility with existing wiring harnesses, minimizing field modification time and restoring OEM-level performance to the condenser unit.
Key Technical Benefits
- High-Voltage Efficiency: Optimized for 460V 3-phase or single-phase industrial power supplies, reducing amperage draw and heat generation.
- Low-Speed Stability: The 825 RPM configuration provides quieter operation and consistent static pressure for specific coil geometries.
- NEMA 48 Frame: Standardized mounting footprint ensures compatibility with various HVAC replacement parts and motor brackets.
- Thermal Protection: Internal automatic reset thermal overload protection prevents winding failure during restricted airflow conditions.
- Weatherproof Construction: TEAO design ensures the internal windings remain isolated from rain, dirt, and debris found in outdoor environments.
Common Installation Questions
What capacitor is required for the MOT11526?
Most 1/4 HP 825 RPM PSC motors utilize a 5 MFD or 7.5 MFD 440V run capacitor; always verify the specific rating printed on the motor nameplate during installation.
Can this motor replace a 1075 RPM motor?
No, replacing a 1075 RPM motor with an 825 RPM motor will significantly reduce airflow and can lead to high head pressure and compressor failure.
Is this motor reversible in the field?
The MOT11526 typically features standard CCWLE or reversible rotation; check the lead wire diagram to ensure proper blade pitch alignment before securing the fan blade.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
