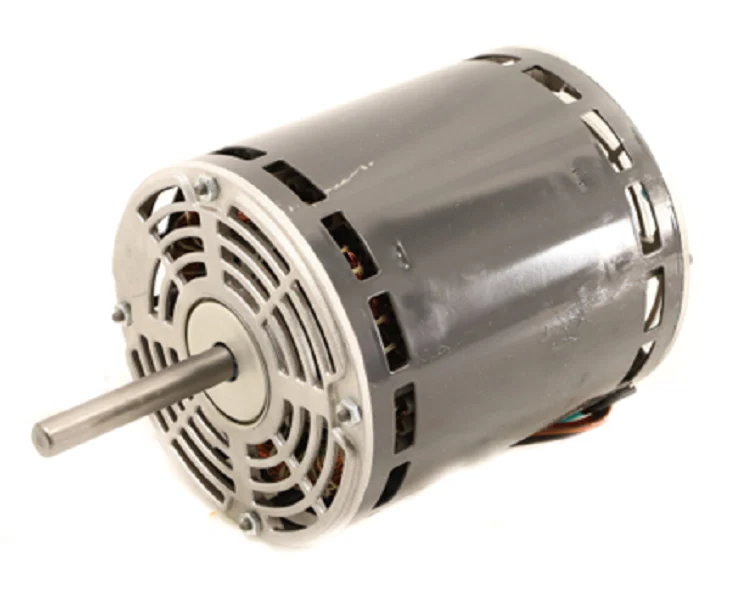

Trane MOT10344 Motor
The Trane MOT10344 Motor is a high-performance 48 Frame Motor engineered for demanding commercial and industrial HVAC applications. This 0.9 HP condenser fan motor operates on a 460V single-phase power supply, delivering a consistent 1075 RPM for optimal heat rejection. As a 2-speed motor, it provides the operational flexibility required for multi-stage cooling systems, ensuring precise airflow management. This OEM Trane replacement motor features a durable ODP (Open Drip Proof) enclosure and high-quality ball bearings, specifically designed for long-term reliability in vertical or horizontal airflow configurations. When performing a field replacement, ensure the 15 UF 370V capacitor is tested or replaced to maintain factory-spec torque and prevent over-amping. The 1/2-inch shaft diameter and 3-inch shaft length ensure direct compatibility with standard Trane fan blades, maintaining the static pressure balance required for outdoor condensing units. This motor is a critical component for restoring the factory performance of 460V Trane rooftop units and split systems.
Key Benefits:- OEM Precision: Genuine Trane MOT10344 part ensures exact physical and electrical drop-in compatibility.
- Dual-Speed Versatility: The 2-speed motor design allows for staged airflow, improving system part-load efficiency.
- Robust Construction: Equipped with industrial-grade ball bearings and a NEMA 48 frame for extended service life in harsh environments.
- High-Voltage Stability: Optimized for 460V single-phase electrical architectures commonly found in commercial installations.
- Is this motor compatible with 230V systems? No, this is a dedicated 460V motor. Applying lower voltage will result in insufficient torque and motor failure.
- What rotation does the MOT10344 use? This model is rated for CW/LE (Clockwise Lead End) rotation, matching standard Trane blower and fan configurations.
- Should I replace the capacitor with this motor? Yes, per standard HVACR best practices, a new 15 MFD 370V capacitor is recommended to ensure the motor starts within rated amp limits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
