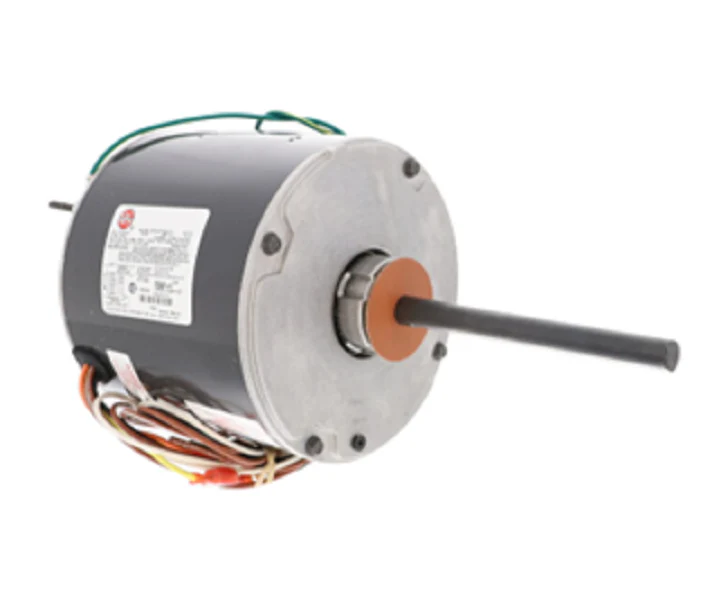

Trane MOT10158 Motor
Replacing a failed condenser fan motor requires a precise match to maintain system equilibrium. The Trane MOT10158 motor is a 1/2 HP, 230V single-phase direct-drive component engineered specifically for high-demand outdoor units. Operating at 1625 RPM, this PSC motor (Permanent Split Capacitor) utilizes a 48Y frame and a totally enclosed air-over (TEAO) housing to protect internal windings from environmental debris and moisture infiltration. With a single-speed configuration and reversible rotation (CW/CCW) capability, it provides the versatility needed for various Trane and American Standard condenser models.
For professional contractors, the MOT10158 offers a 0.5-inch shaft diameter and self-aligning ball bearings, ensuring minimal vibration and extended mechanical life under high-ambient conditions. Its automatic protector type prevents thermal overload during peak summer cycles. When performing a swap, verify your Trane replacement motor matches the 3.0 Full Load Amp (FLA) rating and uses the specified 5 MFD / 370V capacitor to ensure proper starting torque and efficiency.
Key Benefits
- Direct OEM Integration: Matches Trane MOT10158 factory specifications exactly for seamless physical and electrical fit.
- TEAO Enclosure: The totally enclosed air-over design prevents dust and rain from entering the motor, critical for outdoor longevity.
- High-Speed Performance: Maintains consistent 1625 RPM to provide the static pressure required for optimal heat transfer.
- Dual Rotation: Field-reversible CW/CCW rotation allows for compatibility across multiple unit configurations.
- Industrial Build: Features a rolled steel frame and Class B insulation rated for temperatures up to 140°F.
Common Questions
What are the wiring requirements for the MOT10158?
This motor features a 30-inch lead length and typically requires a 5 uF run capacitor. Always refer to the schematic on the motor shell for specific lead identification to ensure correct 208-230V phase wiring.
Can this motor replace a 1075 RPM or 825 RPM fan motor?
No. The 1625 RPM speed is calibrated for specific fan blade pitches. Increasing or decreasing the RPM from the original design can lead to compressor failure or insufficient cooling.
Is the MOT10158 compatible with variable-speed systems?
This is a single-speed PSC motor. It is designed for standard on/off or multi-stage systems that utilize a 230V single-phase power supply and is not a direct replacement for ECM or variable-frequency drive motors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $249.40
-65%$249.40
$87.29Trane MOT10158 Motor
