Trane MOD2686 Stepper Module

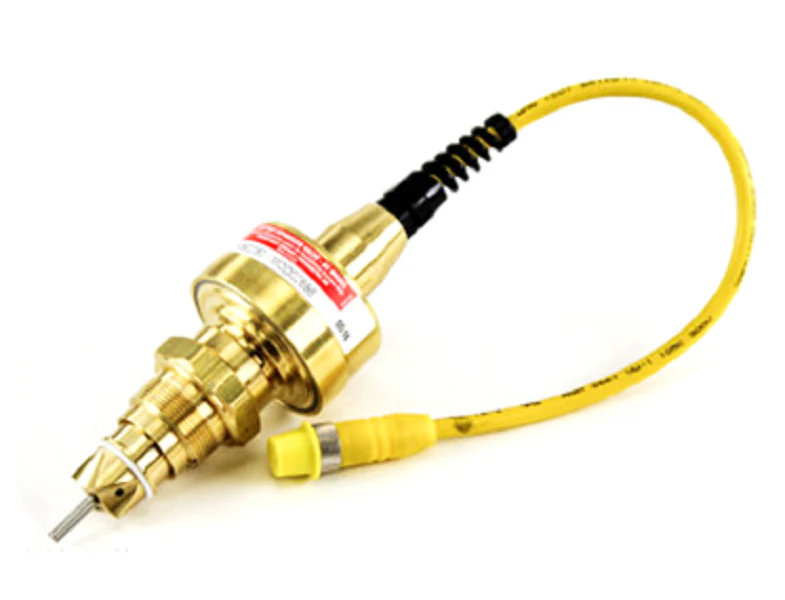

The Trane MOD2686 Stepper Module (identical to MOD02686) is a critical OEM replacement part designed for precision control in high-performance HVAC equipment. This stepper module with motor serves as the driving force for electronic expansion valves (EEV) and precision dampers, commonly found in Trane chillers like the RTAC, Series R, and Sintesis models. By converting digital signals from the main control board into discrete mechanical steps, the MOD2686 ensures accurate refrigerant flow management and optimized superheat control. For a technician in the field, this means reliable refrigerant flow control and enhanced system efficiency without the drift associated with traditional analog actuators. The assembly includes both the electronic drive circuitry and the stepper motor—specifically for Y1187 series components—allowing for a direct-fit swap during maintenance. This HVAC control module is engineered for high-cycle durability, maintaining airflow and fluid control integrity in demanding commercial environments where precise setpoints are non-negotiable.
Key Benefits:- Direct OEM Compatibility: Engineered specifically for Trane and American Standard chiller systems and high-end air handlers.
- Enhanced Precision: Provides discrete step-control for electronic expansion valves, ensuring tighter superheat tolerances than standard solenoid valves.
- Reliable Performance: Features a permanent magnet stepper motor design for consistent torque and positioning over long-term operation.
- Simplified Diagnostics: Standardized M12 input and 5-wire/6-wire configurations allow for straightforward resistance testing and troubleshooting.
- Robust Build: Designed to withstand the thermal oscillations and vibration levels typical in commercial HVACR applications.
Is the MOD2686 compatible with the MOD02686?
Yes, these part numbers are identical and interchangeable. MOD2686 is often used as a shorthand for the full manufacturer designation MOD02686.
Does this module require a system pump-down for replacement?
If you are only replacing the stepper motor and module assembly on an EEV body, a full refrigerant recovery is typically not required as the motor often mounts externally to the valve stem housing. However, always verify the specific valve body model (e.g., Y1187) before beginning work.
How can I verify if the stepper motor is failing?
Technicians should check the resistance across the motor coils. For most 5-wire versions, measuring from the common (often brown) to each of the four legs should yield approximately 46-47 ohms. Deviations or open circuits indicate a failed stepper module.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
