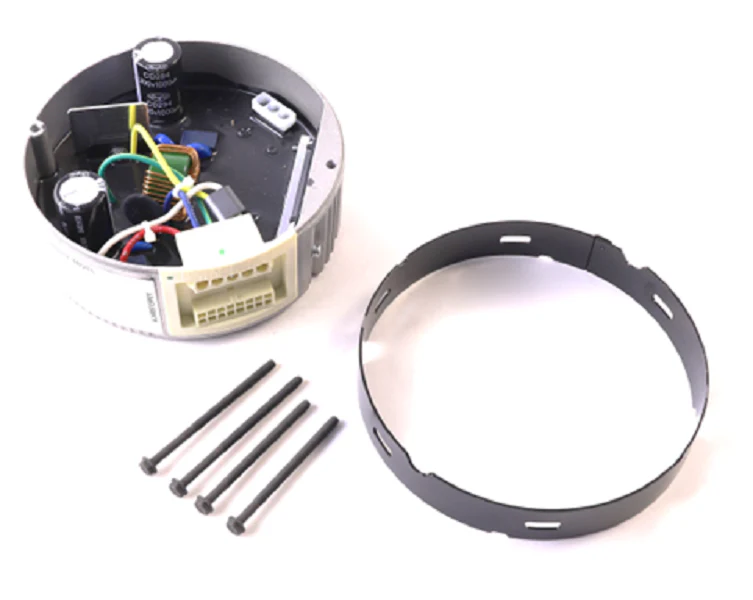

Trane MOD2309 Module
The Trane MOD2309 is a factory-programmed Variable Speed Module specifically engineered for high-efficiency HVAC systems. Unlike universal or aftermarket alternatives, this ECM motor control module is pre-configured to match the specific blower curves and airflow requirements of compatible Trane units. This microprocessor-based control optimizes variable speed fan performance to provide consistent static pressure management while reducing energy consumption. It supports critical system logical operations, including proportional fan speed control and integrated relay switching for complex multi-stage configurations.
For service technicians, installing the MOD2309 Programmed Module ensures seamless communication between the motor and the system control board. This direct-replacement part is essential for restoring precise variable speed motor functionality, which significantly impacts acoustic performance and indoor humidity control. By utilizing a 16-pin connector interface (typical for 2.0 and 2.3 series motors), it eliminates the guesswork associated with unprogrammed modules that require on-site field flashing. This component is the standard for maintaining HVAC energy efficiency and ensuring the electronic motor control system operates within manufacturer-specified parameters.
Key Benefits for Technicians:- Factory-Programmed Logic: Arrives pre-configured with precise RPM and torque parameters to match specific Trane blower housing geometries.
- Enhanced Efficiency: Precise modulation of the variable speed airflow lowers operational costs by matching system output to real-time load demand.
- Acoustic Performance: Transitions fan speeds smoothly to minimize start-up noise and air turbulence in the ductwork.
- System Integration: Ensures 100% compatibility with secondary HVAC components, including chilled beams, thermal valves, and 3-wire actuators.
- Can I use this to replace a non-variable speed module? No, this is a dedicated ECM control module and requires a compatible variable speed motor and control board to function.
- Is field programming required? No, this is a programmed module. Simply verify the part number matches your system's technical submittal before installation.
- Will this work with 3.0 series motors? Generally, no. This 16-pin interface is designed for 2.0 and 2.3 series motors. Check the motor end-cap style before purchasing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
