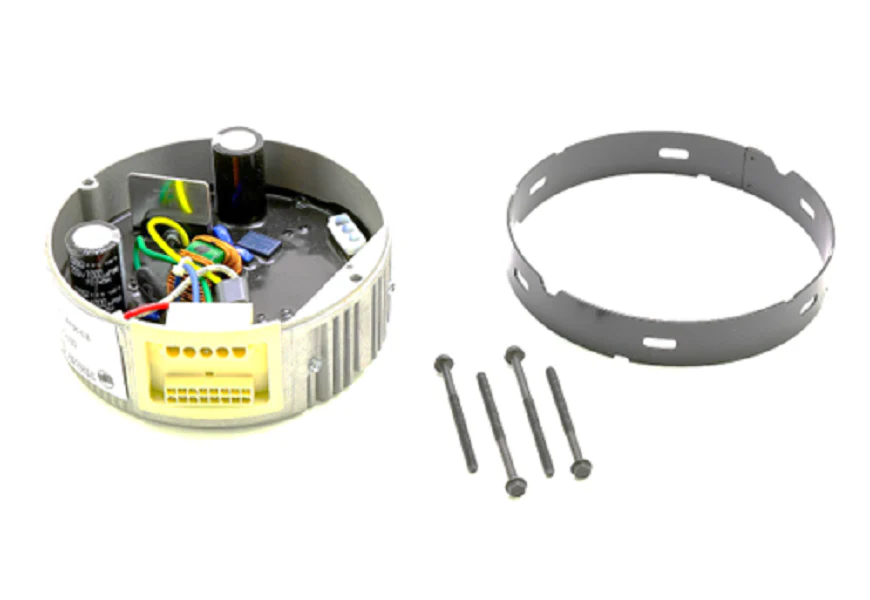

Trane MOD2233 Module
The Trane MOD2233 is a high-performance Programmed Variable Speed Module engineered specifically for 3/4 HP ECM motor applications within Trane and American Standard residential air handlers and furnaces. As a factory-programmed OEM replacement module, it eliminates the need for field programming, ensuring a precise match to the original factory airflow parameters and static pressure response. This variable speed motor control is critical for maintaining the high-efficiency ratings of the system, utilizing a 16-pin connector architecture compatible with series 2.0 and 2.3 motor technologies.
For technicians in the field, the Trane MOD2233 Module provides superior HVAC troubleshooting resolution for intermittent blower failures or communication errors between the integrated furnace control (IFC) and the blower assembly. By regulating electronically commutated motor torque and RPM, this module ensures optimal dehumidification cycles and quiet ramp-up speeds. When replacing an obsolete steel or cast module, this assembly includes the necessary spacer collar to maintain a secure fit and proper heat dissipation during high-load operations.
Key Benefits for Contractors- Factory-Programmed: Pre-flashed with required software for 3/4 HP systems, saving significant time during emergency service calls.
- OEM Compatibility: Exact drop-in replacement for part numbers MOD02233, MOD02176, and D341313P51.
- Advanced Motor Control: Optimized for 16-pin variable speed motors to maintain system efficiency and airflow precision.
- Enhanced Durability: Modern redesign replaces older, less reliable cast modules for improved thermal management.
- Does this module require a separate programming tool? No, this is a factory-programmed unit specifically calibrated for compatible Trane/American Standard models.
- Can this be used to replace a 1/2 HP or 1 HP module? No, this module is rated specifically for 3/4 HP ECM motors; using an incorrect horsepower rating will lead to airflow inaccuracies and potential motor failure.
- What are the signs that only the module needs replacement rather than the whole motor? If the motor windings show proper resistance but the fan fails to start or oscillates, the Trane blower motor module is the likely point of failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
